Illuminated tactile switch featuring a blue actuator and LED illumination. This through-hole mount component offers a 1.57N operating force, 0.25mm switch travel, and a 24V DC, 50mA contact rating with silver contacts. Designed for 1,000,000 electrical and mechanical cycles, it operates within a -25°C to 70°C temperature range and has a straight orientation.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron B3W-9000-B2B technical specifications.
General
Actuator Color
Blue
Actuator Length
5.2mm
Contact Current Rating
50mA
Contact Material
Silver
Contact Plating
Silver
Current Rating
50mA
Electrical Life
1000000Cycles
Height
11mm
Illumination Color
Blue
Illumination Type
LED, Illuminated
Length
10mm
Max Operating Temperature
70°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
24V
Mount
Through Hole
Number of Poles
1
Operating Force
1.57N
Orientation
Straight
Package Quantity
300
Packaging
Bulk
Radiation Hardening
No
Ratings
IP00
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
B3W-9
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
24V
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Omron B3W-9000-B2B Datasheet
Download the complete datasheet for Omron B3W-9000-B2B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

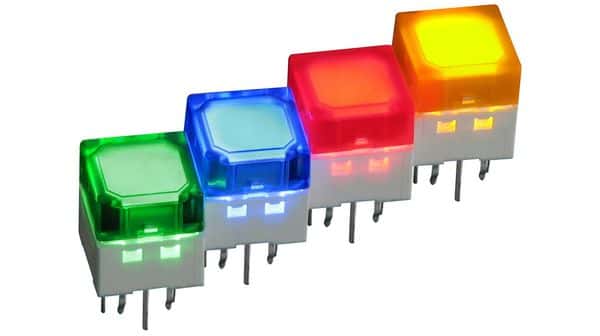

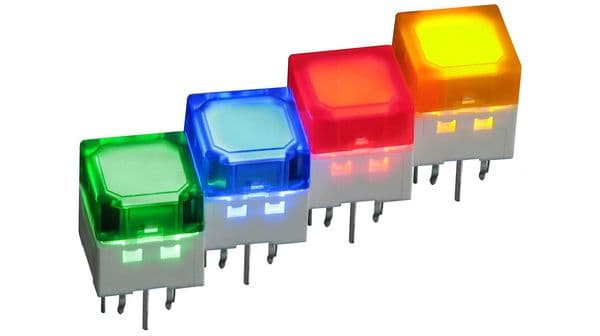

Product Images
