Illuminated tactile switch featuring a straight, through-hole mount with a 10mm x 10mm x 11mm footprint. This SPST switch offers a 1.57N operating force and 0.25mm travel, with a 50mA current rating at 24V DC. It utilizes silver contacts and plating, providing a mechanical life of 1,000,000 cycles. The clear actuator and cap are illuminated by a red LED, and the component is RoHS compliant.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron B3W-9000-R2C technical specifications.
General
Actuator Color
Clear
Color
Clear
Contact Material
Silver
Contact Plating
Silver
Current Rating
50mA
Height
11mm
Illumination Color
Red
Illumination Type
LED, Illuminated
Length
10mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000000Cycles
Mount
Through Hole
Number of Poles
1
Operating Force
1.57N
Orientation
Straight
Package Quantity
300
Packaging
Bulk
RoHS Compliant
Yes
Series
B3W-9
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
24V
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Omron B3W-9000-R2C Datasheet
Download the complete datasheet for Omron B3W-9000-R2C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

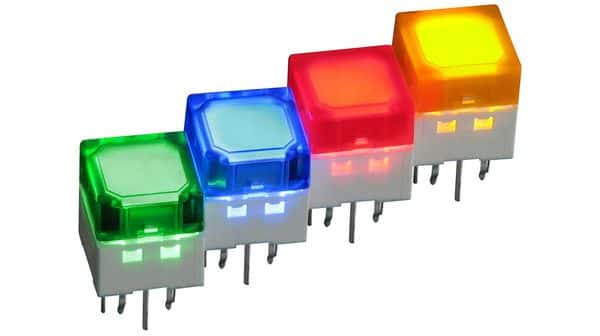

Product Images
