SPDT/SP safety interlock switch featuring a plunger actuator and screw mount. Rated for 16A at 250VAC, this switch offers a mechanical life of 10,000,000 cycles and an electrical life of 100,000 cycles. Operating force is 300gf, with a temperature range of -25°C to 85°C. Termination is via quick connect, and the switch is RoHS compliant.
Current Rating16A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron D2D-1000 technical specifications.
General
Actuator Type
PLUNGER
Color
Black
Contact Current Rating
16A
Contact Material
Silver
Current Rating
16A
Electrical Life
100000Cycles
Lead Free
Lead Free
Max Current Rating
16A
Max Operating Temperature
85°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Chassis Mount, Screw
Operating Force
300gf
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D2D
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT, SP
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
Omron D2D-1000 Datasheet
Download the complete datasheet for Omron D2D-1000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

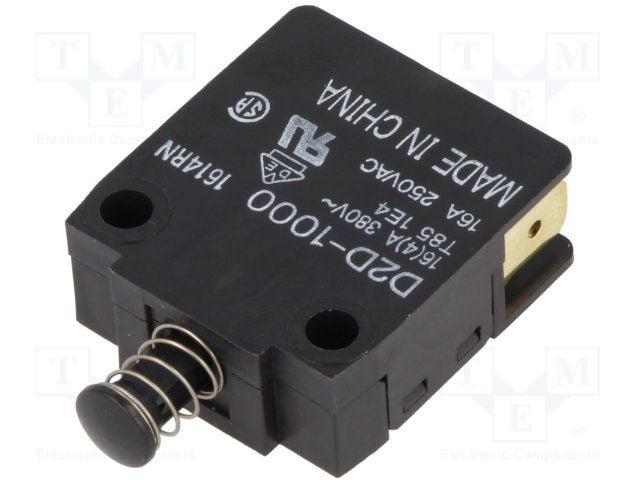

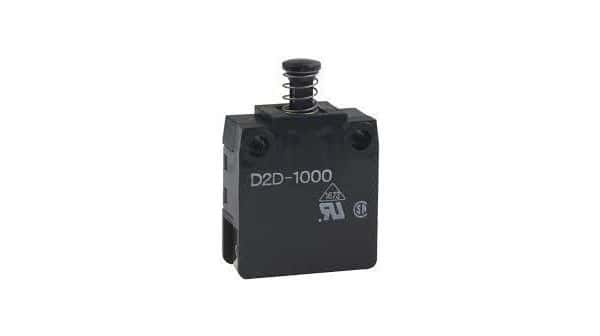

Product Images
