Technical Specifications
Omron D2F01D3 technical specifications.
General
| Actuator Type | PIN PLUNGER |
| Package/Case | 100 |
| Contact Current Rating | 100mA |
| Contact Material | Gold |
| Current Rating | 100mA |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 1000000Cycles |
| Mount | Panel, Screw |
| Operating Force | 1.47N |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| Series | D2F |
| Termination | Solder |
| Throw Configuration | SPDT |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D2F01D3 Datasheet
Download the complete datasheet for Omron D2F01D3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

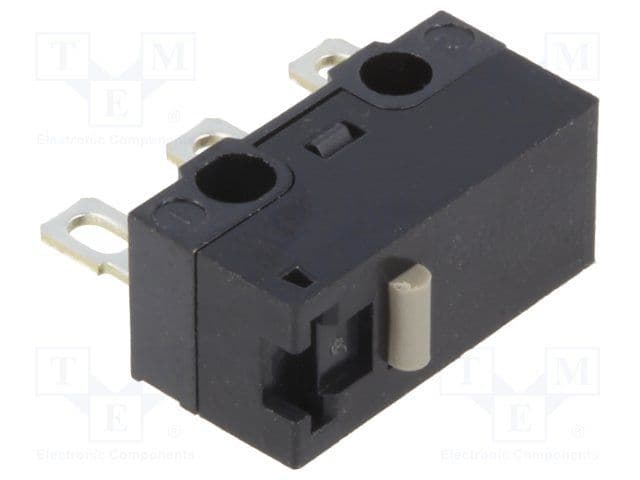

Product Images
