SPDT basic/snap action switch featuring a leaf lever actuator. Rated for 1A at 30V DC, with silver contact material and an electrical life of 30,000 cycles. Offers a mechanical life of 300,000 cycles, operating force of 2.45N, and an IP67 rating. Mounting options include screw, surface mount, brackets, and wire, with straight orientation and wire termination.
Current Rating1A
MountingScrew, Surface Mount, Brackets, Wire
Quick Jump:
Technical Specifications
Omron D2FW-G271M technical specifications.
General
| Actuator Type | LEAF LEVER |
| Contact Current Rating | 1A |
| Contact Material | Silver |
| Current Rating | 1A |
| Electrical Life | 30000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Mechanical Life | 300000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Screw, Surface Mount, Brackets, Wire |
| Number of Poles | 1 |
| Operating Force | 2.45N |
| Orientation | Straight |
| Package Quantity | 20 |
| Packaging | Tray |
| Radiation Hardening | No |
| Ratings | IP67 |
| RoHS Compliant | Yes |
| Series | D2FW-G |
| Termination | Wire |
| Throw Configuration | SPDT |
| DC Rated Voltage | 30V |
| Weight | 10.4g |
Compliance
| RoHS | Compliant |
Datasheet
Omron D2FW-G271M Datasheet
Download the complete datasheet for Omron D2FW-G271M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

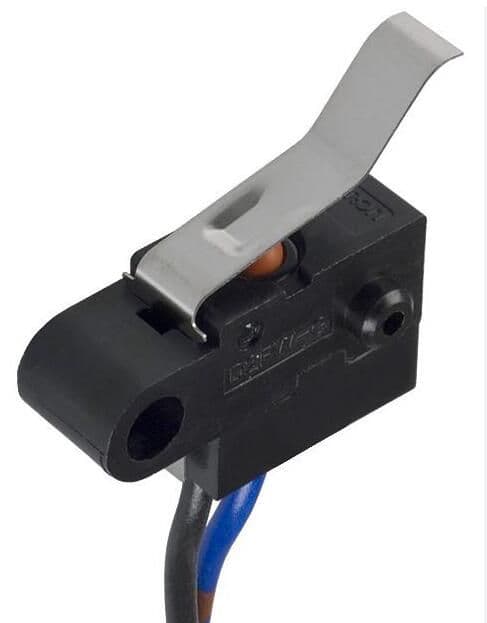

Product Images
