SPDT snap action switch featuring a leaf lever actuator. Offers a 2A contact current rating at 125VAC and 42VDC, with a 1.8N operating force. Designed for panel or chassis mounting via screw terminals and wire leads, this switch boasts IP67, waterproof, and dust-tight ratings. Electrical and mechanical life cycles are rated at 100,000 and 1,000,000 respectively, with a temperature range of -40°C to 85°C.
Package125
Current Rating2A
MountingPanel, Chassis Mount, Screw, Wire
Quick Jump:
Technical Specifications
Omron D2HW-BL261M technical specifications.
General
Actuator Type
LEAF LEVER
Package/Case
125
Contact Current Rating
2A
Contact Material
Gold, Silver
Current Rating
2A
Differential Travel
0.02inch
Electrical Life
100000Cycles
Height
7mm
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
42V
Mechanical Life
1000000Cycles
Mount
Panel, Chassis Mount, Screw, Wire
Number of Poles
1
Number of Positions
2
Operating Force
1.8N
Operating Position
0.291inch
Orientation
Straight
Overtravel
0.07inch
Package Quantity
20
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D2HW
Switch Function
On-Mom
Termination
Wire Leads
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Omron D2HW-BL261M Datasheet
Download the complete datasheet for Omron D2HW-BL261M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

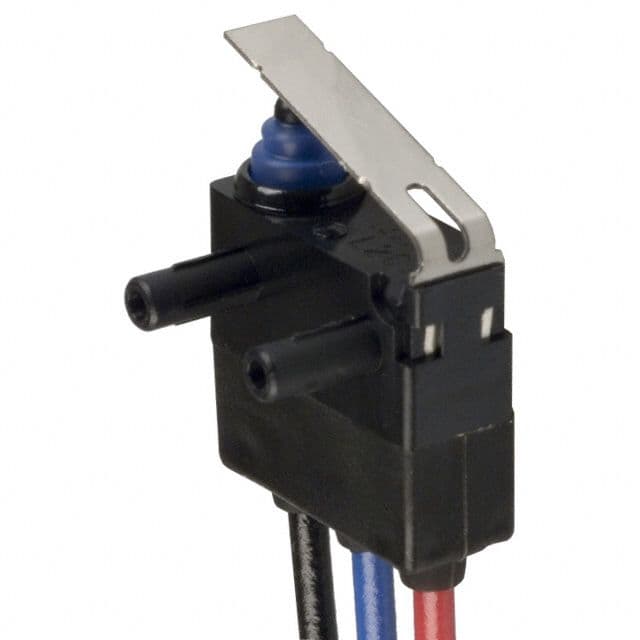

Product Images
