SPDT snap action switch featuring a pin plunger actuator. Rated for 2A at 125V AC and 12V DC, with gold-plated gold and silver contacts. Offers 100,000 electrical cycles and 1,000,000 mechanical cycles. Mounts via panel, chassis, screw, or wire, with straight orientation and wire lead termination. IP67 rated for waterproof and dust-tight operation, with an operating temperature range of -40°C to 85°C.
Package125
Current Rating2A
MountingPanel, Chassis Mount, Screw, Wire
Quick Jump:
Technical Specifications
Omron D2HW-C201M technical specifications.
General
| Actuator Type | PIN PLUNGER |
| Package/Case | 125 |
| Contact Current Rating | 2A |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Current Rating | 2A |
| Depth | 8.3mm |
| Electrical Life | 100000Cycles |
| Height | 7mm |
| Lead Free | Lead Free |
| Length | 18.5mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 42V |
| Mechanical Life | 1000000Cycles |
| Mount | Panel, Chassis Mount, Screw, Wire |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 0.75N |
| Orientation | Straight |
| Package Quantity | 20 |
| Packaging | Tray |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D2HW |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 12V |
| Weight | 0.7g |
Compliance
| RoHS | Compliant |
Datasheet
Omron D2HW-C201M Datasheet
Download the complete datasheet for Omron D2HW-C201M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

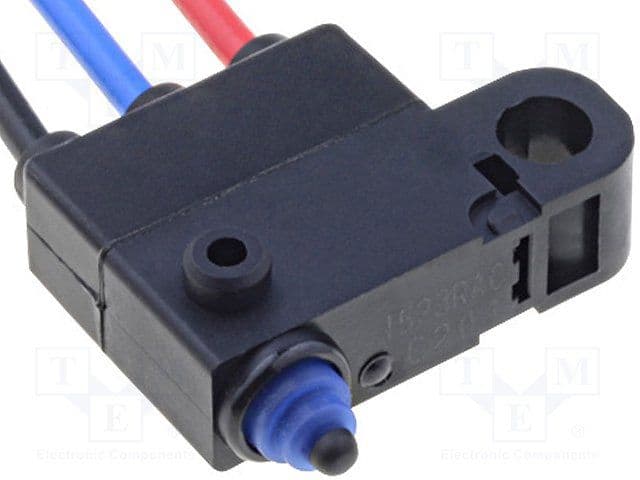

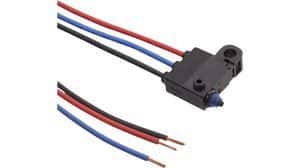

Product Images
