SPST-NO microswitch featuring a pin plunger actuator and wire lead termination. Rated for 2A at 125 VAC, with a DC rating of 12V. Offers a mechanical life of 1,000,000 cycles and an electrical life of 100,000 cycles. IP67 rated for waterproof and dust-tight operation, with a wide operating temperature range of -40°C to 85°C. Panel, chassis, screw, and wire mounting options are supported.
Package125
Current Rating2A
MountingPanel, Chassis Mount, Screw, Wire
Quick Jump:
Technical Specifications
Omron D2HW-C203M technical specifications.
General
Actuator Type
PIN PLUNGER
Package/Case
125
Contact Current Rating
2A
Contact Material
Gold
Contact Plating
Gold
Current Rating
2A
Differential Travel
0.01inch
Electrical Life
100000Cycles
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
42V
Mechanical Life
1000000Cycles
Mount
Panel, Chassis Mount, Screw, Wire
Operating Force
0.75N
Operating Position
0.25inch
Orientation
Straight
Overtravel
0.055inch
Package Quantity
100
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D2HW
Switch Function
Off-Mom
Termination
Wire Leads
Throw Configuration
SPST
Voltage Rating (AC)
125V
DC Rated Voltage
12V
Weight
0.7g
Compliance
RoHS
Compliant
Datasheet
Omron D2HW-C203M Datasheet
Download the complete datasheet for Omron D2HW-C203M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

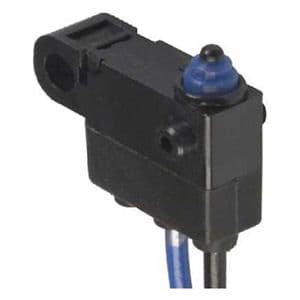

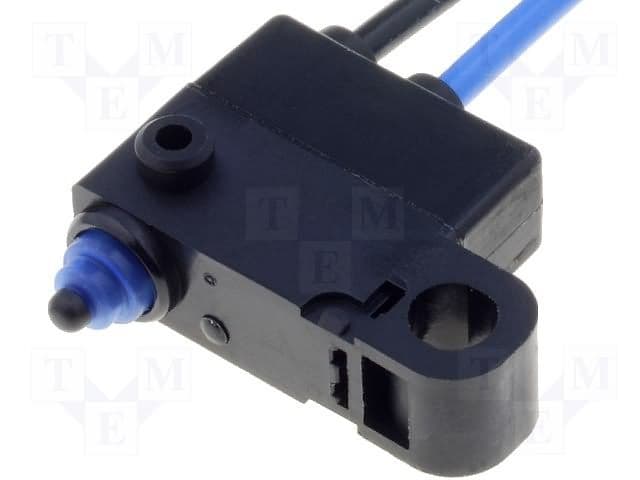

Product Images
