SPDT Basic / Snap Action Switch featuring a LEAF LEVER actuator and SOLDER termination. Rated for 2A at 125V AC and 42V DC, with a 1.8N operating force. Offers 100,000 electrical and 1,000,000 mechanical life cycles. Chassis, panel, screw, and solder mounting options are supported. IP67, Waterproof, and Dust Tight ratings ensure durability.
Current Rating2A
MountingChassis Mount, Panel, Screw, Solder
Quick Jump:
Technical Specifications
Omron D2HW-C261H technical specifications.
General
| Actuator Type | LEAF LEVER |
| Contact Current Rating | 2A |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Current Rating | 2A |
| Differential Travel | 0.02inch |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 42V |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Panel, Screw, Solder |
| Operating Force | 1.8N |
| Operating Position | 0.291inch |
| Orientation | Straight |
| Overtravel | 0.07inch |
| Package Quantity | 250 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | D2HW |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 12V |
| Width | 18.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron D2HW-C261H Datasheet
Download the complete datasheet for Omron D2HW-C261H to view detailed technical specifications.
No datasheet is available for this part.

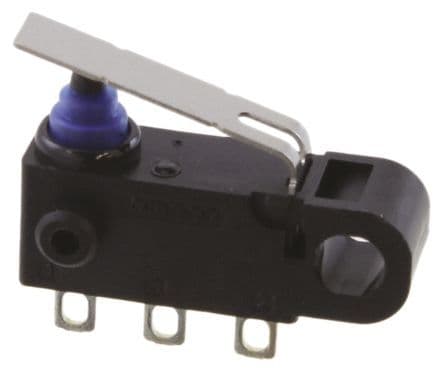

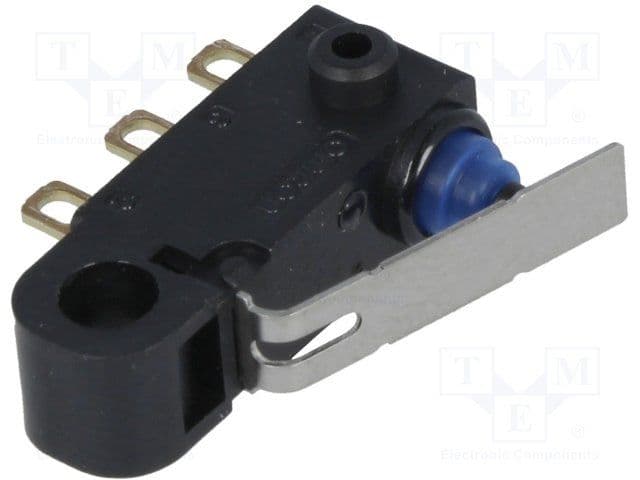

Product Images
