Omron
D2MQ-4L-1-L
Switch Snap Action N.O./N.C. SPDT Hinge Leaf Lever 0.5A 30VDC 0.39N Thru-Hole PC Pins
Current Rating500mA
MountingPanel, Chassis Mount, Through Hole, Screw
Quick Jump:
Technical Specifications
Omron D2MQ-4L-1-L technical specifications.
General
Contact Plating
Silver
Current Rating
500mA
Electrical Life
10000Cycles
Max Operating Temperature
70°C
Mechanical Life
30000Cycles
Min Operating Temperature
-15°C
Max Voltage Rating (DC)
30V
Mount
Panel, Chassis Mount, Through Hole, Screw
Operating Force
0.39N
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
RoHS Compliant
Yes
Series
D2MQ
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
DC Rated Voltage
30V
Weight
0.3g
Compliance
RoHS
Compliant
Datasheet
Omron D2MQ-4L-1-L Datasheet
Download the complete datasheet for Omron D2MQ-4L-1-L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

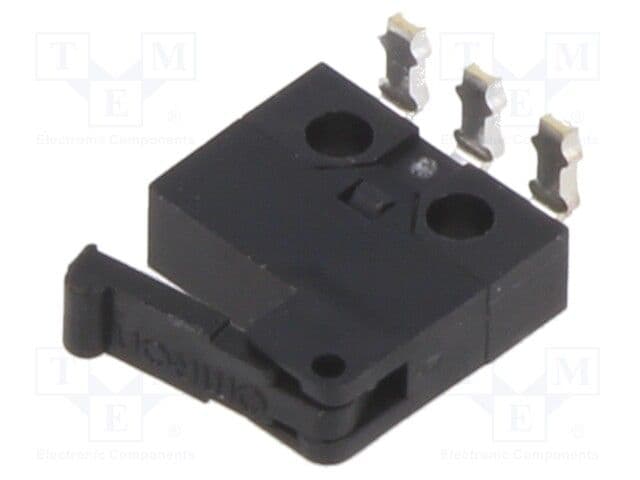

Product Images
