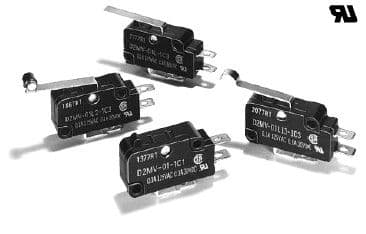

D2MV-1-1C1

SPDT snap-action switch featuring silver contacts, rated for 1A at 125VAC and 30VDC. Offers a 0.1N operating force with 0.047-inch pretravel and 0.051-inch overtravel. Designed for chassis mounting via screw or solder termination, with a straight orientation. Achieves 500,000 electrical cycles and 10,000,000 mechanical cycles, operating within -25°C to 80°C. IP40 rated and RoHS compliant.
