Technical Specifications
Omron D2QW-C003D technical specifications.
General
| Actuator Type | PIN PLUNGER |
| Contact Current Rating | 100mA |
| Contact Material | Gold |
| Current Rating | 100mA |
| Electrical Life | 200000Cycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 500000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Panel, Through Hole |
| Operating Force | 1.5N |
| Operating Position | 0.33inch |
| Overtravel | 0.106inch |
| Package Quantity | 250 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D2QW |
| Switch Function | Off-Mom |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D2QW-C003D Datasheet
Download the complete datasheet for Omron D2QW-C003D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

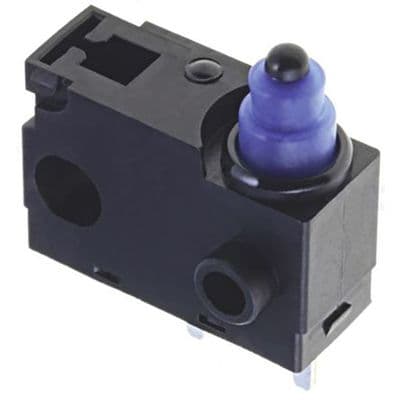

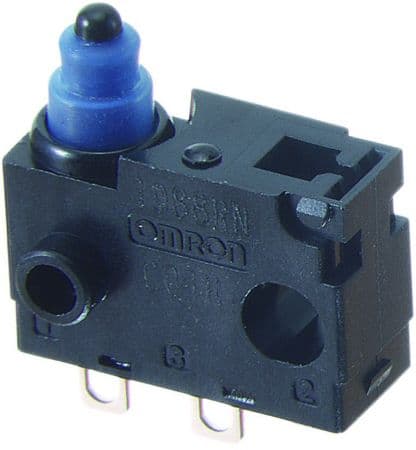

Product Images
