Technical Specifications
Omron D2RV-L22G-1 technical specifications.
General
Current Rating
250mA
Differential Travel
0.04inch
Electrical Life
3000000Cycles
Max Operating Temperature
60°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-10°C
Mount
Chassis Mount
Operating Position
0.803inch
Overtravel
0.015inch
Package Quantity
100
Packaging
Bulk
Pretravel
0.071inch
Ratings
IP40
Series
D2RV
Switch Function
Off-Mom
Termination
Quick Connect
Throw Configuration
SPST
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Omron D2RV-L22G-1 Datasheet
Download the complete datasheet for Omron D2RV-L22G-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

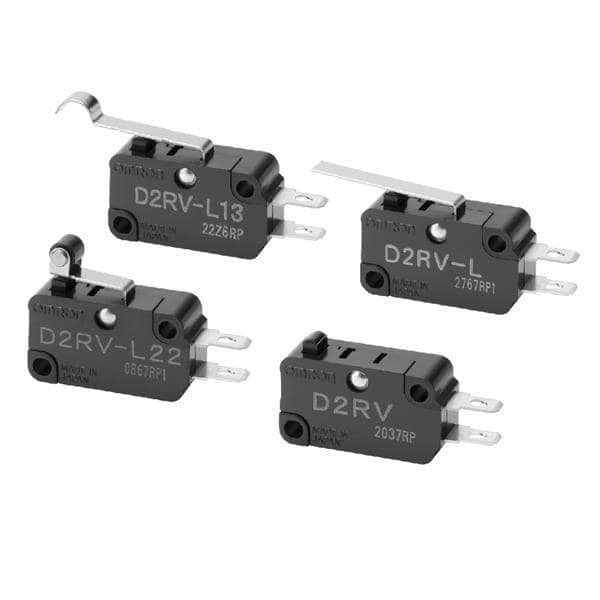

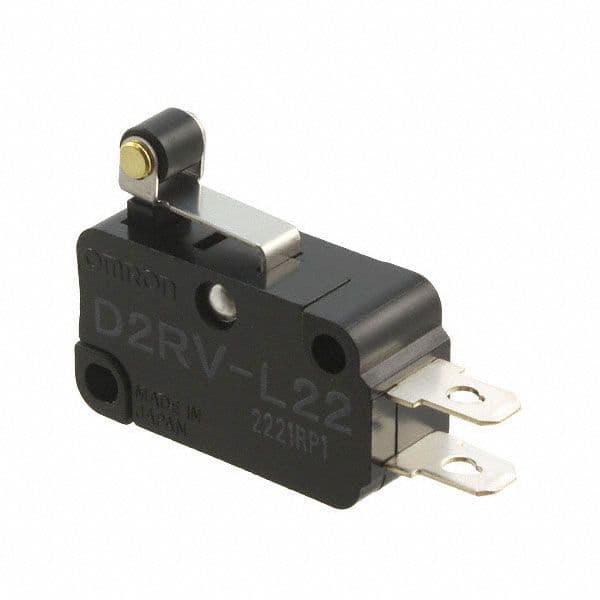

Product Images
