Miniature basic switch featuring SPST (Single Pole Single Throw) On-Mom functionality. Silver contacts rated for 3A at 125V AC and 30V DC. Offers a mechanical life of 5,000,000 cycles and an electrical life of 200,000 cycles. Designed for chassis mounting with screw or wire termination, and straight orientation. Withstands operating temperatures from -40°C to 85°C and boasts IP67, waterproof, and dust-tight ratings.
Current Rating3A
MountingChassis Mount, Screw, Wire
Quick Jump:
Technical Specifications
Omron D2SW-3-2MS technical specifications.
General
| Contact Material | Silver |
| Current Rating | 3A |
| Differential Travel | 0.004inch |
| Electrical Life | 200000Cycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 5000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Screw, Wire |
| Operating Force | 1.77N |
| Operating Position | 0.33inch |
| Orientation | Straight |
| Overtravel | 0.02inch |
| Package Quantity | 200 |
| Packaging | Bulk |
| Pretravel | 0.024inch |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| Series | D2SW |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Weight | 10g |
Compliance
| RoHS | Compliant |
Datasheet
Omron D2SW-3-2MS Datasheet
Download the complete datasheet for Omron D2SW-3-2MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

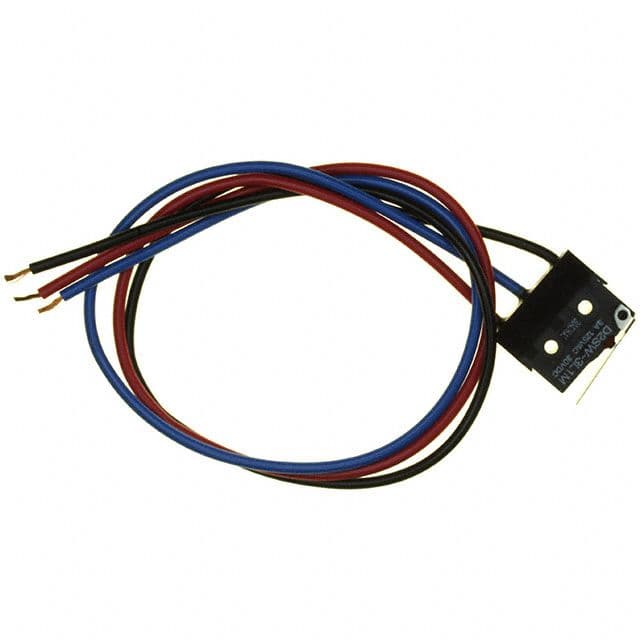

Product Images
