SPDT snap action switch featuring a roller lever actuator and quick connect termination. Rated for 3A at 250VAC and 30VDC, with a contact material of silver. Offers a mechanical life of 5,000,000 cycles and an electrical life of 200,000 cycles. Designed for panel or chassis mounting with screw terminals, operating within a temperature range of -40°C to 85°C. IP67 rated for waterproof and dust-tight applications.
Package125
Current Rating3A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron D2SW-3L2T technical specifications.
General
Actuator Type
ROLLER LEVER
Package/Case
125
Contact Current Rating
3A
Contact Material
Silver
Contact Plating
Silver
Current Rating
3A
Differential Travel
0.031inch
Electrical Life
200000Cycles
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mechanical Life
5000000Cycles
Mount
Panel, Chassis Mount, Screw
Operating Force
0.59N
Operating Position
0.571inch
Orientation
Straight
Overtravel
0.04inch
Package Quantity
500
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
Unknown
Series
D2SW
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Weight
2g
Compliance
RoHS
Compliant
Datasheet
Omron D2SW-3L2T Datasheet
Download the complete datasheet for Omron D2SW-3L2T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

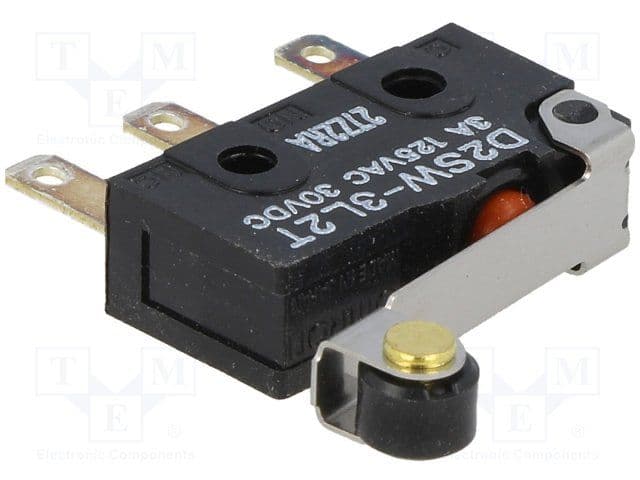

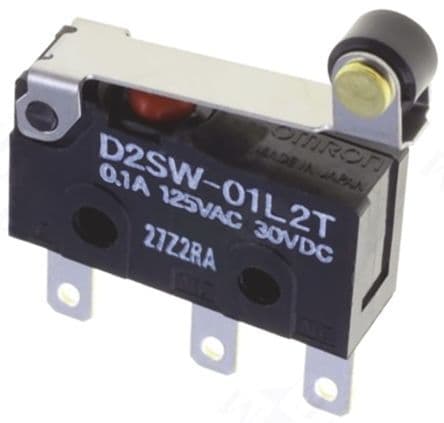

Product Images
