SPDT detector switch with PC pin termination, featuring a 3.5mm toggle actuator and straight orientation. Offers a 100mA contact current rating at 30VDC, with silver contacts and a mechanical/electrical life of 50,000 cycles. Designed for through-hole PCB mounting, this RoHS compliant switch operates within a -20°C to 80°C temperature range.
Current Rating100mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Omron D3C-2210 technical specifications.
General
Actuator Length
3.5mm
Actuator Type
Toggle
Body Depth
5.6mm
Body Height
6mm
Body Length
8mm
Contact Current Rating
100mA
Contact Material
Silver
Current Rating
100mA
Electrical Life
50000Cycles
Height
6mm
Lead Free
Lead Free
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
30V
Mechanical Life
50000Cycles
Mount
Through Hole, PCB
Number of Poles
1
Operating Force
130gf
Orientation
Straight
Package Quantity
500
Packaging
Bulk
Ratings
IP00
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D3C
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
DC Rated Voltage
30V
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Omron D3C-2210 Datasheet
Download the complete datasheet for Omron D3C-2210 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

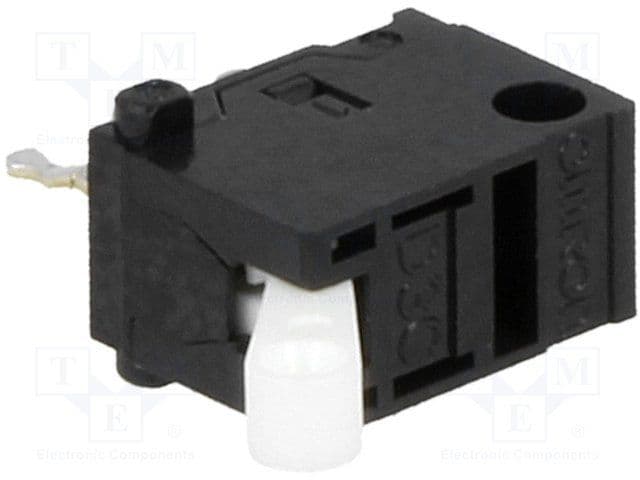

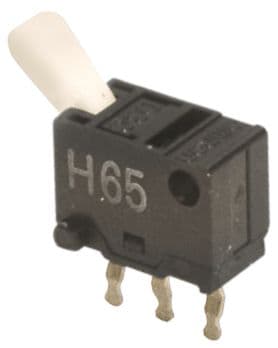

Product Images
