SPDT detector switch with a 100mA, 30VDC rating. Features a 3.5mm toggle actuator and PC pin termination for through-hole PCB mounting. Offers 50,000 cycles of electrical and mechanical life, operating between -20°C and 80°C. RoHS compliant with a straight orientation.
Current Rating100mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Omron D3C-2220 technical specifications.
General
Actuator Length
3.5mm
Actuator Type
Toggle
Body Depth
5.6mm
Body Height
6mm
Body Length
8mm
Contact Current Rating
100mA
Contact Material
Silver
Current Rating
100mA
Electrical Life
50000Cycles
Height
6mm
Lead Free
Lead Free
Max Operating Temperature
80°C
Max Voltage Rating (DC)
30V
Mechanical Life
50000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole, PCB
Number of Poles
1
Number of Positions
2
Operating Force
40gf
Orientation
Straight
Package Quantity
500
Packaging
Bulk
Ratings
IP00
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D3C
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
DC Rated Voltage
30V
Weight
0.010582oz
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Omron D3C-2220 Datasheet
Download the complete datasheet for Omron D3C-2220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

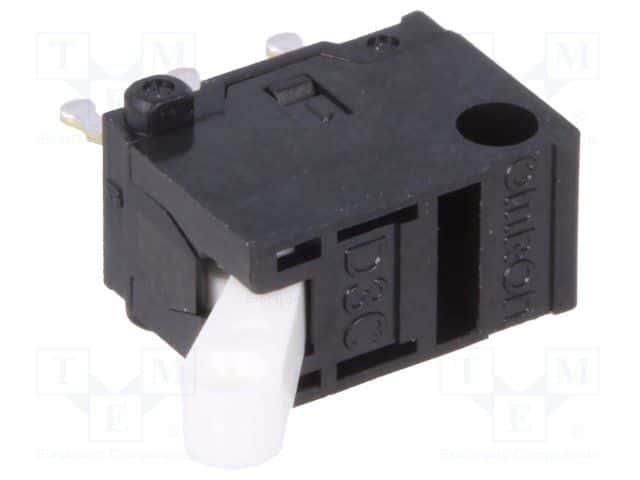

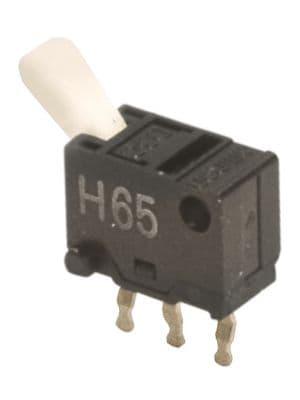

Product Images
