Snap action switch featuring a straight, lever actuator. This SPST-NO switch offers a 100mA contact current rating at 30V DC. Designed for chassis mount with screw termination, it boasts an electrical life of 200,000 cycles and a mechanical life of 500,000 cycles. Operating force is 0.5N, with a temperature range of -25°C to 85°C. The component is RoHS compliant and lead-free, supplied in a tray of 100 units.
Package100
Current Rating100mA
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron D3M-01K1-3 technical specifications.
General
| Actuator Type | Lever |
| Package/Case | 100 |
| Contact Current Rating | 100mA |
| Contact Material | Gold |
| Current Rating | 100mA |
| Electrical Life | 200000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 500000Cycles |
| Mount | Chassis Mount, Screw |
| Number of Poles | 1 |
| Operating Force | 0.5N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Tray |
| Ratings | IP40, IP00 |
| RoHS Compliant | Yes |
| Series | D3M |
| Switch Function | Off-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D3M-01K1-3 Datasheet
Download the complete datasheet for Omron D3M-01K1-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

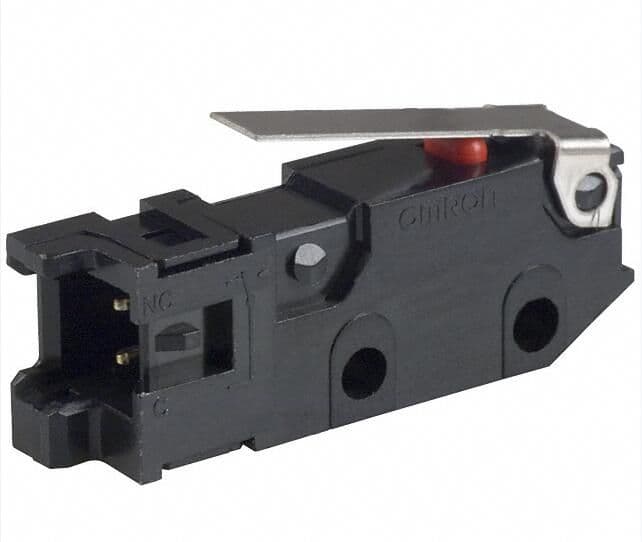

Product Images
