SPST snap action switch featuring a simulated roller lever actuator. Gold contacts provide 100mA current rating at 30VDC. Offers a mechanical life of 500,000 cycles and an electrical life of 200,000 cycles. Mounting options include panel, chassis, and screw terminals with quick connect termination. Operating force is 0.5N, with an operating temperature range of -25°C to 85°C. RoHS compliant and IP40 rated.
Current Rating100mA
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron D3M-01K3-3 technical specifications.
General
| Actuator Material | Stainless Steel |
| Contact Material | Gold |
| Current Rating | 100mA |
| Depth | 7.2mm |
| Electrical Life | 200000Cycles |
| Lead Free | Lead Free |
| Length | 29.2mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 500000Cycles |
| Mount | Panel, Chassis Mount, Screw |
| Operating Force | 0.5N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Tray |
| Radiation Hardening | No |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D3M |
| Switch Function | Off-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D3M-01K3-3 Datasheet
Download the complete datasheet for Omron D3M-01K3-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

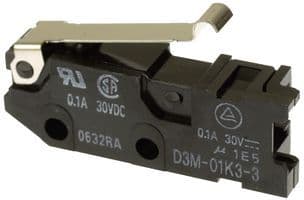

Product Images
