Technical Specifications
Omron D3M-01L1 technical specifications.
General
Contact Material
Gold
Current Rating
100mA
Electrical Life
200000Cycles
Lead Free
Lead Free
Length
29.2mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
30V
Mechanical Life
500000Cycles
Mount
Chassis Mount, Screw
Number of Poles
1
Operating Force
1N
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Ratings
IP40, IP00
RoHS Compliant
Yes
Series
D3M
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPST
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D3M-01L1 Datasheet
Download the complete datasheet for Omron D3M-01L1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

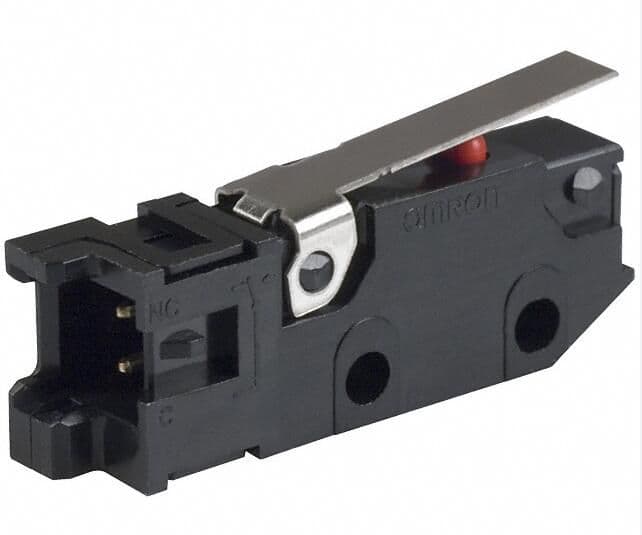

Product Images
