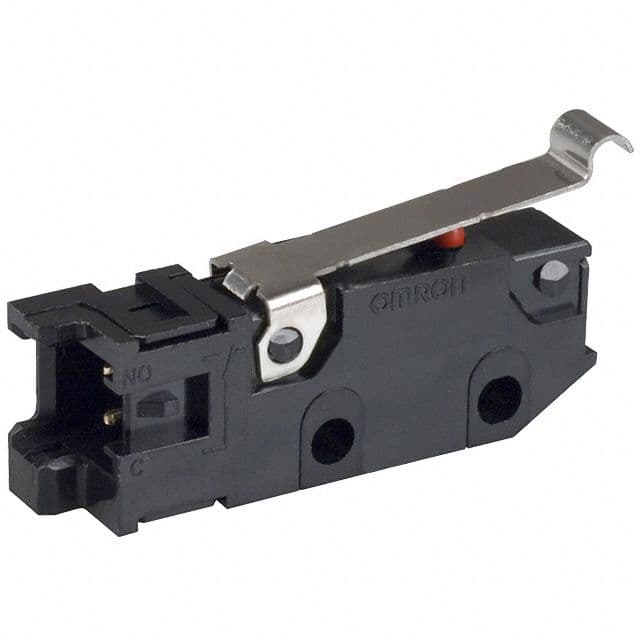

Snap action switch with a simulated roller lever actuator. Features a single pole, single throw normally closed (SPST-NC) configuration, rated for 100mA at 30V DC. Offers a 100mA contact current rating with gold contact material and a 1N operating force. Designed for chassis mount with screw termination and quick connect leads. Electrical life is 200,000 cycles, with a mechanical life of 500,000 cycles. Operating temperature range is -25°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D3M-01L3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | SIMULATED ROLLER LEVER |
| Package/Case | 100 |
| Contact Current Rating | 100mA |
| Contact Material | Gold |
| Current Rating | 100mA |
| Differential Travel | 0.025inch |
| Electrical Life | 200000Cycles |
| Lead Free | Lead Free |
| Length | 29.2mm |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 500000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Chassis Mount, Screw |
| Number of Poles | 1 |
| Operating Force | 1N |
| Operating Position | 0.445inch |
| Orientation | Straight |
| Overtravel | 0.026inch |
| Package Quantity | 500 |
| Packaging | Bulk |
| Ratings | IP67, IP40, IP00 |
| RoHS Compliant | Yes |
| Series | D3M |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
