SPST Detector Switch, Surface Mount, Right Angle orientation. Features a 2.3mm toggle actuator, 1mA contact current rating, and 5VDC maximum voltage rating. Offers 100,000 electrical cycles and 150,000 mechanical cycles. Operates within a temperature range of -25°C to 85°C. Packaged in Tape and Reel for SMT assembly.
PackageSMD/SMT
Current Rating1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron D3SH-A1L technical specifications.
General
Actuator Length
2.3mm
Actuator Type
Toggle
Body Depth
3.1mm
Body Height
0.9mm
Body Length
3mm
Package/Case
SMD/SMT
Contact Current Rating
1mA
Current Rating
1mA
Electrical Life
100000Cycles
Height
0.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
5V
Mechanical Life
150000Cycles
Mount
Surface Mount
Operating Force
0.3N
Orientation
Right Angle
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D3SH
Switch Function
Off-Mom
Termination
SMD/SMT
Throw Configuration
SPST
DC Rated Voltage
5V
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Omron D3SH-A1L Datasheet
Download the complete datasheet for Omron D3SH-A1L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

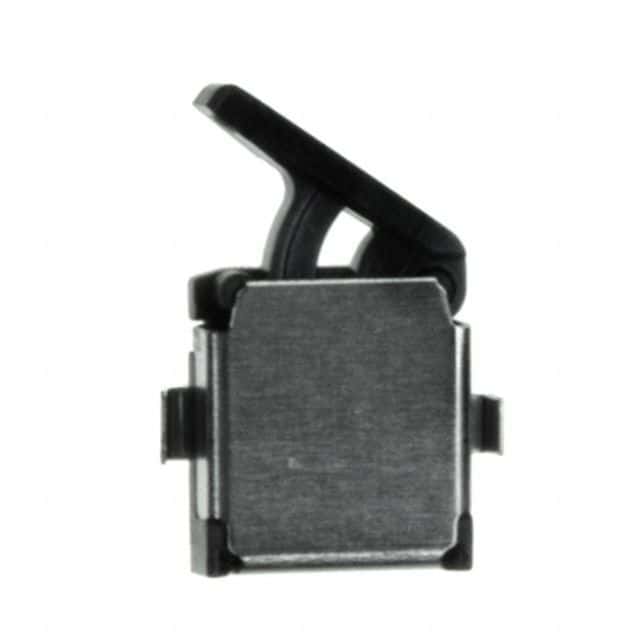

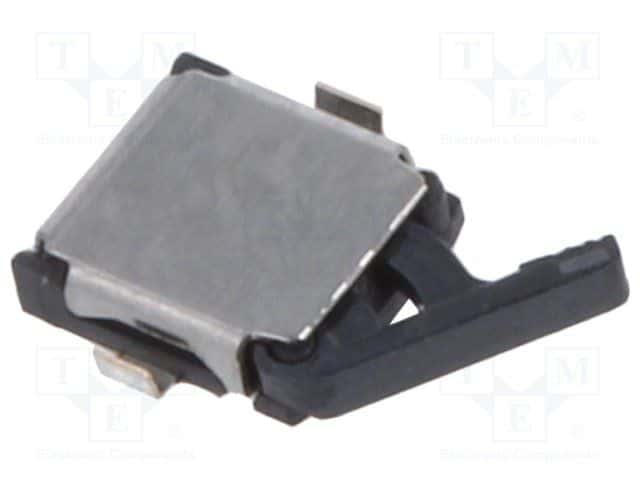

Product Images
