SPST detector switch featuring a 2.3mm toggle actuator and right-angle orientation for surface mount applications. This component offers a 1mA contact current rating at 5VDC, with electrical and mechanical life cycles of 100,000 and 150,000 respectively. Operating force is 31gf, and the switch is designed for tape and reel packaging. Dimensions include a 3mm body length, 3.1mm depth, and 0.9mm height, with an operating temperature range of -25°C to 85°C.
PackageSMD/SMT
Current Rating1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron D3SH-A1R technical specifications.
General
Actuator Length
2.3mm
Actuator Type
Toggle
Body Depth
3.1mm
Body Height
0.9mm
Body Length
3mm
Package/Case
SMD/SMT
Contact Current Rating
1mA
Current Rating
1mA
Electrical Life
100000Cycles
Height
0.9mm
Max Operating Temperature
85°C
Mechanical Life
150000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
5V
Mount
Surface Mount
Operating Force
31gf
Orientation
Right Angle
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D3SH
Switch Function
Off-Mom
Termination
SMD/SMT
Throw Configuration
SPST
DC Rated Voltage
5V
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Omron D3SH-A1R Datasheet
Download the complete datasheet for Omron D3SH-A1R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

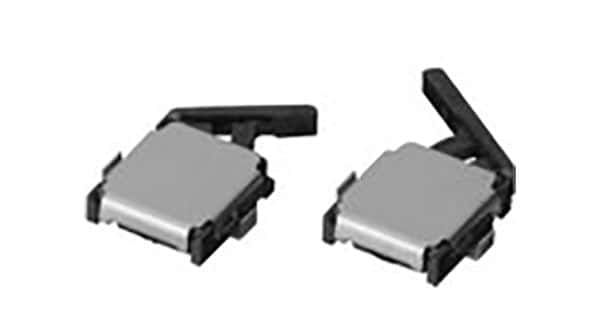

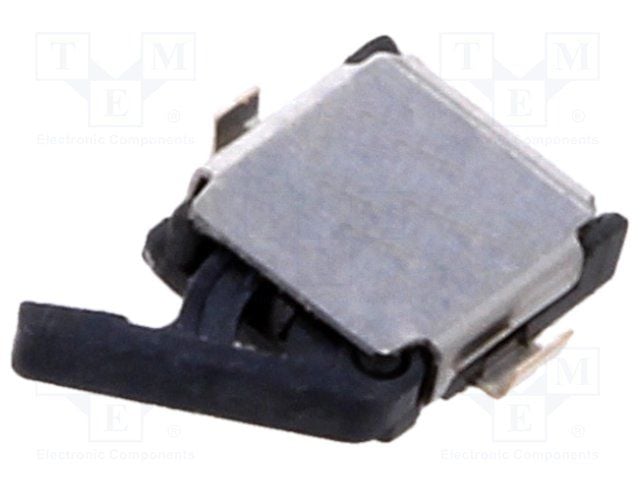

Product Images
