Omron
D3V-16-2A5
OMRON ELECTRONIC COMPONENTS D3V-16-2A5 Microswitch, D3V Series, SPST-NC, Pin Plunger, Solder, 16 A, 250 VAC
Current Rating10A
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D3V-16-2A5 technical specifications.
General
Actuator Type
PIN PLUNGER
Contact Current Rating
16A
Contact Material
Silver
Current Rating
10A
Differential Travel
0.016inch
Electrical Life
100000Cycles
Max Operating Temperature
105°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-25°C
Mount
Chassis Mount
Operating Position
0.579inch
Overtravel
0.04inch
Packaging
Bulk
Pretravel
0.047inch
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D3V
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D3V-16-2A5 Datasheet
Download the complete datasheet for Omron D3V-16-2A5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

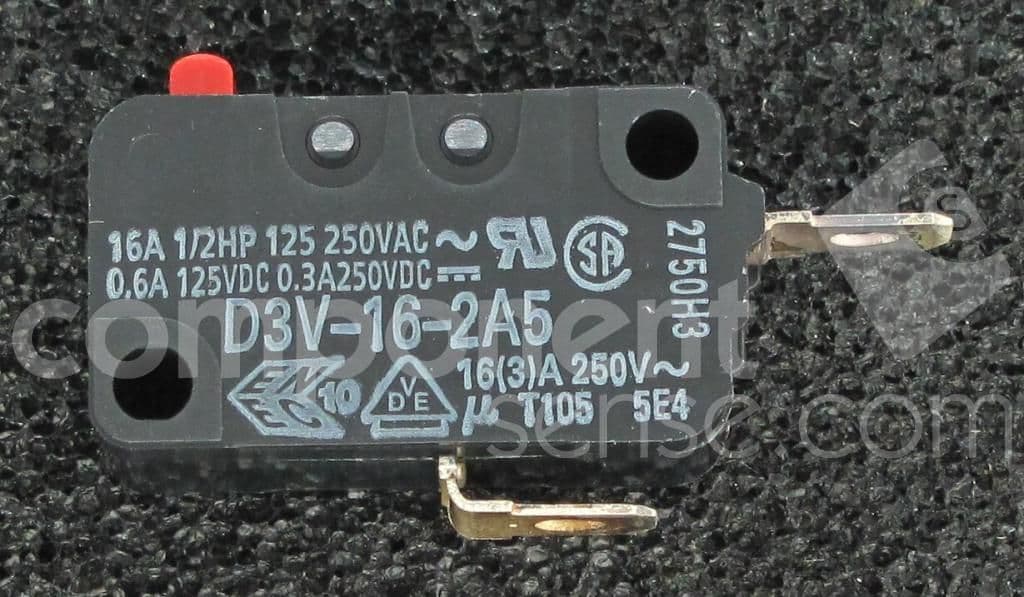

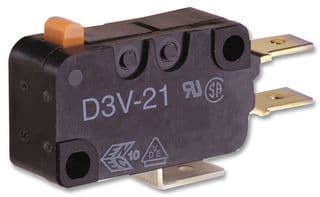

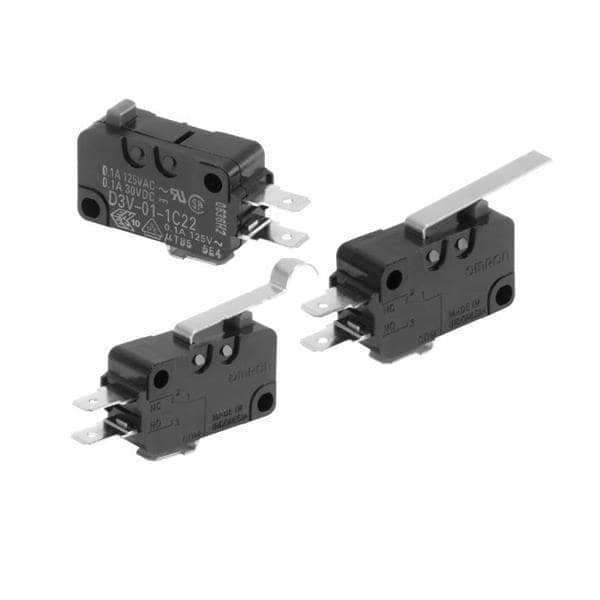

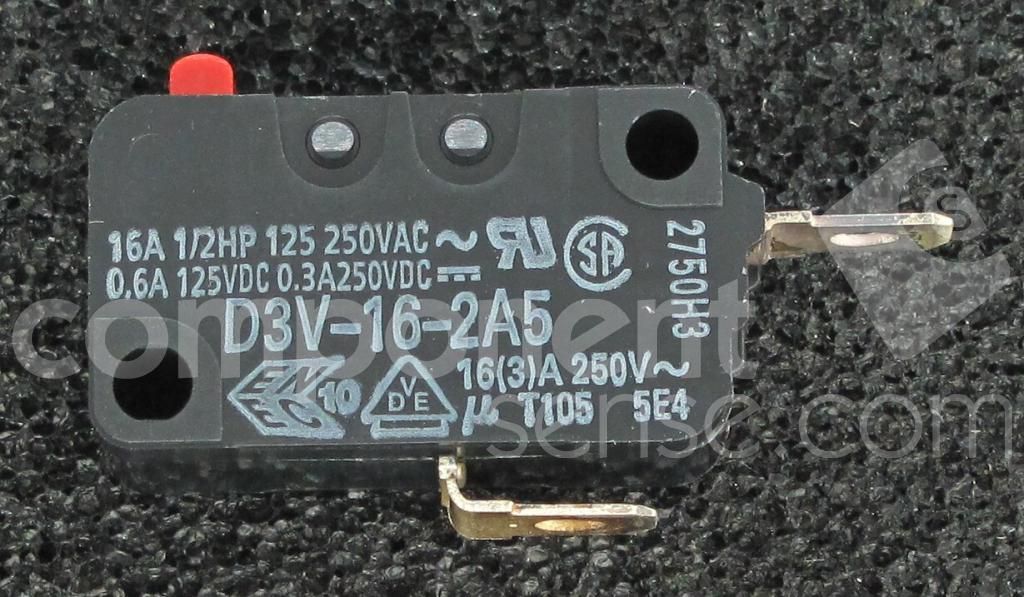

Product Images
