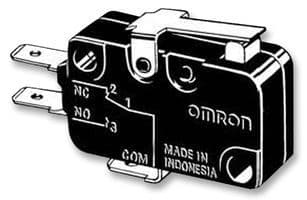

The Omron D3V-161-1C5 is a short hinge lever switch with a contact current rating of 16A and a DC rated voltage of 30V. It features a silver contact material with silver plating and a quick connect termination. The switch has a SPDT throw configuration and is rated for IP40. It operates within a temperature range of -25°C to 105°C and has a mechanical life of 10,000,000 cycles. The Omron D3V-161-1C5 is RoHS compliant and suitable for chassis mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D3V-161-1C5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | SHORT HINGE LEVER |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 16A |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 105°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Chassis Mount |
| Operating Force | 200gf |
| Packaging | Bulk |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D3V |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
