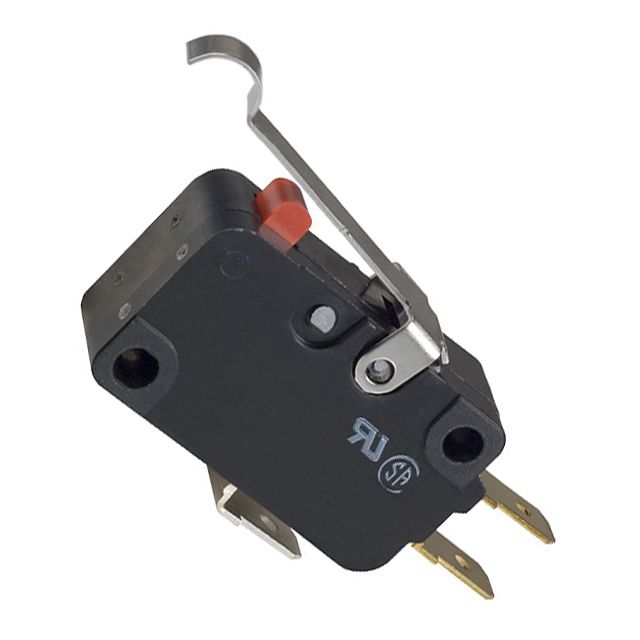

SPST snap action switch featuring a long hinge lever and quick connect termination. Rated for 16A at 250VAC and 250VDC, with a 372.85VA rating. Silver contacts ensure reliable operation with an operating force of 0.69N. Offers a mechanical life of 10,000,000 cycles and an electrical life of 100,000 cycles. Chassis mountable via screw terminals, operating within a temperature range of -25°C to 105°C.
Current Rating10A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron D3V-163M-3C5 technical specifications.
General
| Contact Material | Silver |
| Current Rating | 10A |
| Differential Travel | 0.11inch |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Mount | Chassis Mount, Screw |
| Operating Force | 0.69N |
| Operating Position | 0.6inch |
| Orientation | Straight |
| Overtravel | 0.079inch |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 0.354inch |
| Ratings | IP40 |
| RoHS Compliant | Yes |
| Series | D3V |
| Switch Function | Off-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D3V-163M-3C5 Datasheet
Download the complete datasheet for Omron D3V-163M-3C5 to view detailed technical specifications.
No datasheet is available for this part.
