SPDT microswitch with a simulated roller lever actuator, designed for general applications. Features a 16A contact current rating at 250VAC, with silver contacts and plating. Offers a 10A current rating and a 30V DC rated voltage. This RoHS compliant switch boasts a 100,000 cycle electrical life and 10,000,000 cycle mechanical life, operating within a temperature range of -25°C to 105°C. Termination is via solder, with chassis mounting.
Current Rating10A
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D3V-164-1A5 technical specifications.
General
Actuator Type
SIMULATED ROLLER LEVER
Contact Current Rating
16A
Contact Material
Silver
Contact Plating
Silver
Current Rating
10A
Differential Travel
0.06inch
Electrical Life
100000Cycles
Max Operating Temperature
105°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-25°C
Mount
Chassis Mount
Operating Position
0.738inch
Overtravel
0.062inch
Packaging
Bulk
Pretravel
0.157inch
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D3V
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D3V-164-1A5 Datasheet
Download the complete datasheet for Omron D3V-164-1A5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

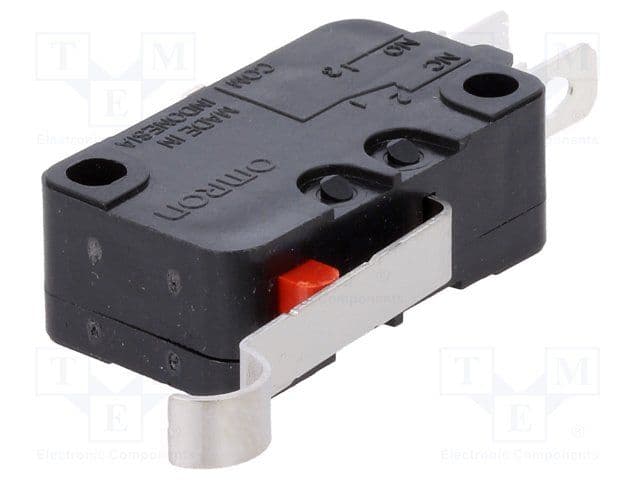

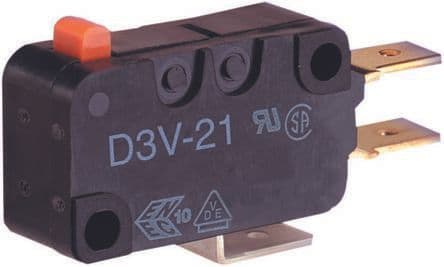

Product Images
