SPST-NC microswitch featuring a simulated roller lever actuator and solder termination. Offers a 16A contact current rating at 250VAC and 30VDC, with a 10A general current rating. Constructed with silver contacts and plating, it boasts an electrical life of 100,000 cycles and a mechanical life of 10,000,000 cycles. Operating temperature range is -25°C to 105°C, with an IP40 rating.
Current Rating10A
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D3V-164-2A5 technical specifications.
General
Actuator Type
SIMULATED ROLLER LEVER
Contact Current Rating
16A
Contact Material
Silver
Contact Plating
Silver
Current Rating
10A
Differential Travel
0.06inch
Electrical Life
100000Cycles
Max Operating Temperature
105°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-25°C
Mount
Chassis Mount
Operating Position
0.738inch
Overtravel
0.062inch
Packaging
Bulk
Pretravel
0.157inch
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D3V
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D3V-164-2A5 Datasheet
Download the complete datasheet for Omron D3V-164-2A5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

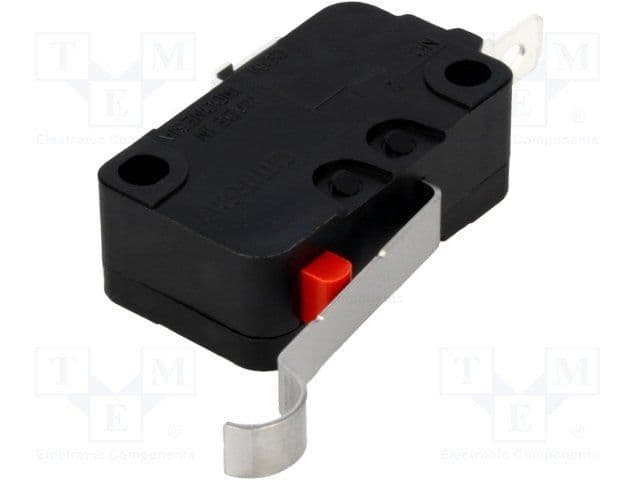

Product Images
