SPST-NO microswitch featuring a simulated roller lever actuator. Offers a 16A contact current rating with silver contacts and plating, suitable for 250VAC and 30VDC applications. Designed for chassis mounting with quick connect and solder termination options. Boasts a mechanical life of 10,000,000 cycles and an electrical life of 100,000 cycles. Operating temperature range from -25°C to 105°C, with IP40 ingress protection.
Current Rating10A
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron D3V-164M-3C5 technical specifications.
General
Actuator Type
SIMULATED ROLLER LEVER
Contact Current Rating
16A
Contact Material
Silver
Contact Plating
Silver
Current Rating
10A
Differential Travel
0.06inch
Electrical Life
100000Cycles
Max Operating Temperature
105°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-25°C
Mount
Chassis Mount
Operating Position
0.738inch
Overtravel
0.062inch
Packaging
Bulk
Pretravel
0.157inch
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D3V
Switch Function
Off-Mom
Termination
Quick Connect
Throw Configuration
SPST
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D3V-164M-3C5 Datasheet
Download the complete datasheet for Omron D3V-164M-3C5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

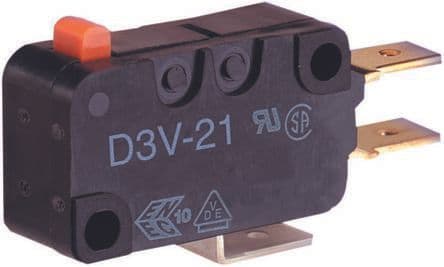

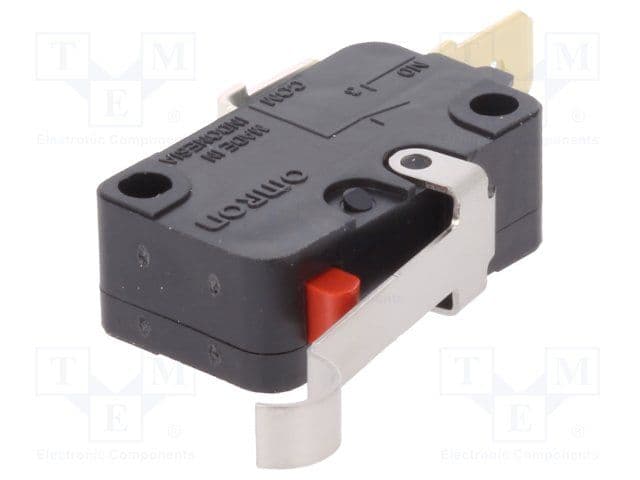

Product Images
