Miniature basic switch featuring silver contacts, rated for 10A at 250V AC/DC. This SPST, On-Mom switch offers a quick connect termination and chassis mount with screw for secure installation. Operating force is 1.96N, with a differential travel of 0.012 inches and overtravel of 0.04 inches. Designed for a wide temperature range from -25°C to 105°C, it boasts an electrical life of 100,000 cycles and a mechanical life of 10,000,000 cycles.
Current Rating10A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron D3V-16G-2C5-K technical specifications.
General
| Contact Material | Silver |
| Current Rating | 10A |
| Differential Travel | 0.012inch |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 105°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mount | Chassis Mount, Screw |
| Operating Force | 1.96N |
| Operating Position | 0.579inch |
| Orientation | Straight |
| Overtravel | 0.04inch |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 0.047inch |
| Ratings | IP40 |
| Series | D3V |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Weight | 6.2g |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron D3V-16G-2C5-K Datasheet
Download the complete datasheet for Omron D3V-16G-2C5-K to view detailed technical specifications.
No datasheet is available for this part.

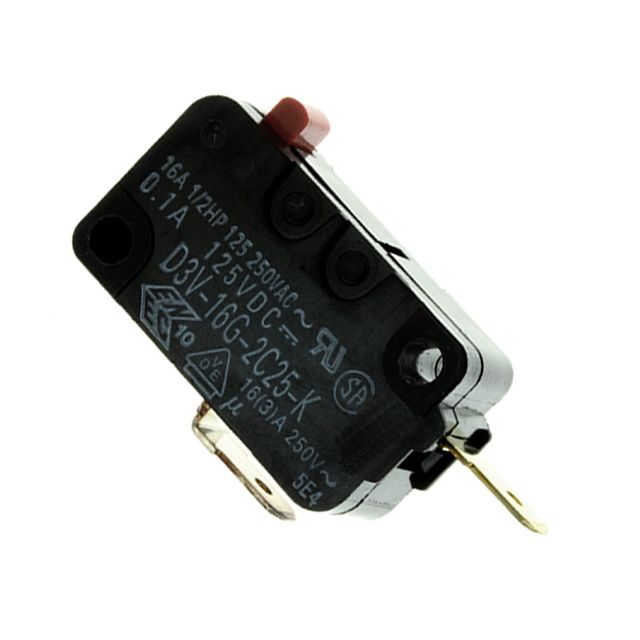

Product Images
