Miniature basic switch featuring a pin plunger actuator and SPST throw configuration. Rated for 16A at 250VAC/DC, with a DC rated voltage of 30V. Offers 100,000 electrical cycles and 10,000,000 mechanical cycles, with silver contact material. Designed for chassis mounting with quick connect termination, operating between -25°C and 105°C.
Current Rating16A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron D3V-16G-3C25 technical specifications.
General
| Actuator Type | PIN PLUNGER |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Current Rating | 16A |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Mount | Chassis Mount, Screw |
| Operating Force | 1.96N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D3V |
| Switch Function | Off-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Weight | 6.2g |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron D3V-16G-3C25 Datasheet
Download the complete datasheet for Omron D3V-16G-3C25 to view detailed technical specifications.
No datasheet is available for this part.

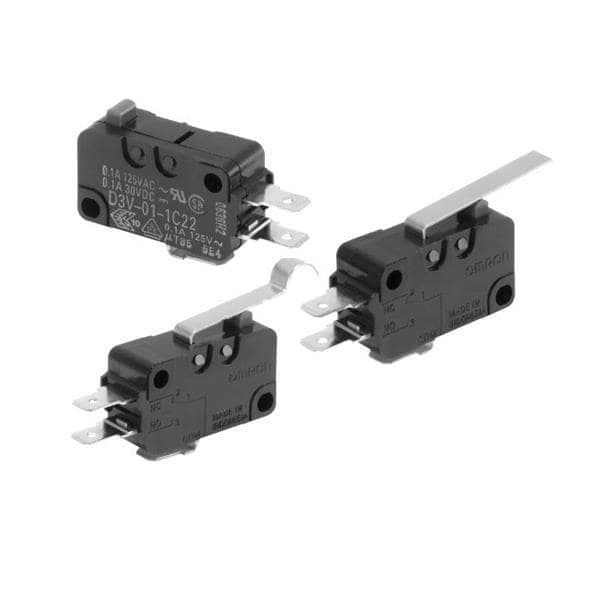

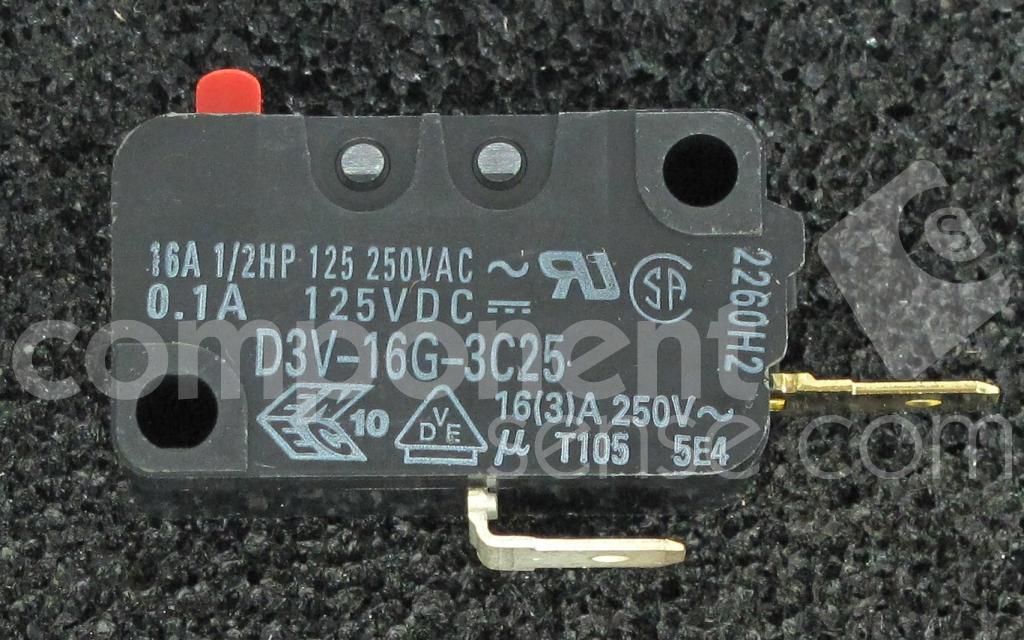

Product Images
