SPDT snap action switch featuring a hinge lever and quick connect termination. Rated for 21A at 250VAC and 30VDC, with a contact material of silver. Offers a mechanical life of 10,000,000 cycles and an electrical life of 50,000 cycles. Operating force is 0.78N, with differential travel at 0.031 inches and overtravel at 0.062 inches. Chassis mountable via screw, with an operating temperature range of -25°C to 85°C and IP40 rating.
Current Rating14A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron D3V-21G2M-1C4A-K technical specifications.
General
| Contact Material | Silver |
| Current Rating | 14A |
| Differential Travel | 0.031inch |
| Electrical Life | 50000Cycles |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Chassis Mount, Screw |
| Operating Force | 0.78N |
| Operating Position | 0.6inch |
| Orientation | Straight |
| Overtravel | 0.062inch |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 0.157inch |
| Ratings | IP40 |
| RoHS Compliant | Yes |
| Series | D3V |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D3V-21G2M-1C4A-K Datasheet
Download the complete datasheet for Omron D3V-21G2M-1C4A-K to view detailed technical specifications.
No datasheet is available for this part.

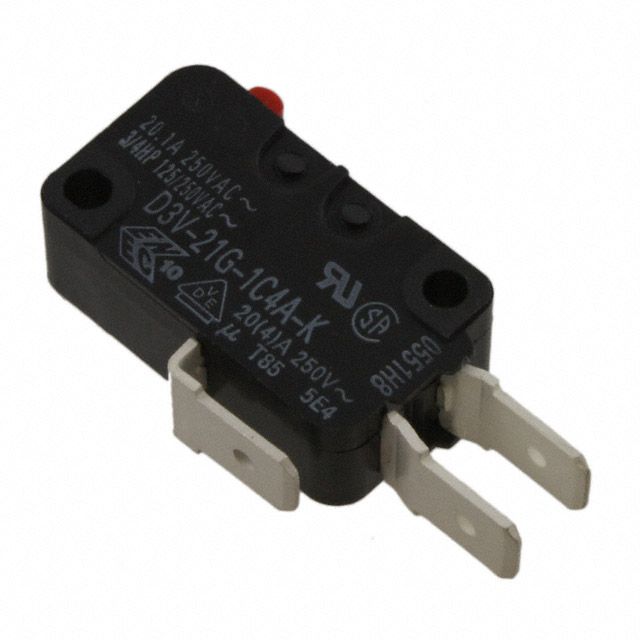

Product Images
