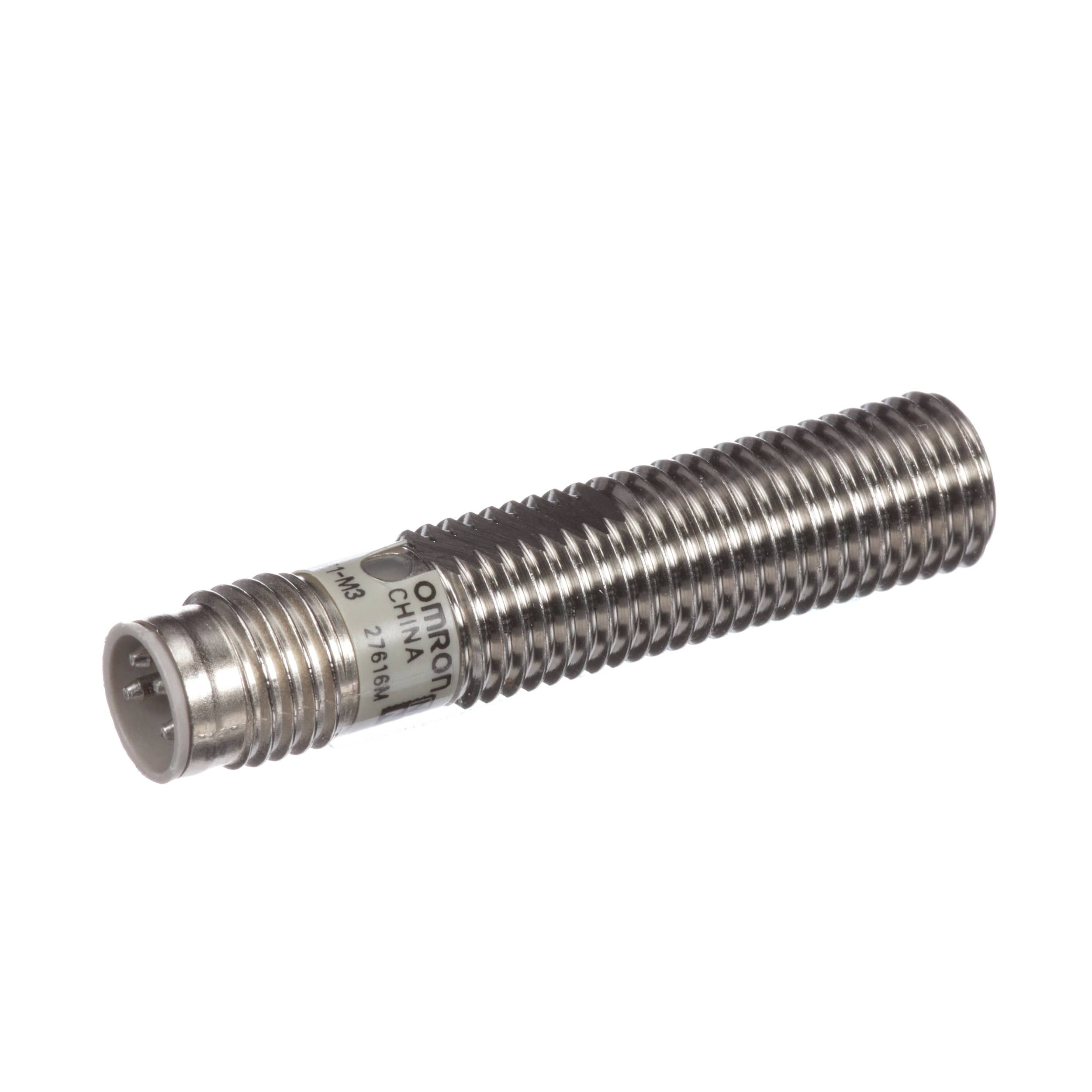

Inductive proximity sensor with a 1.5mm sensing distance, featuring a stainless steel body and shielded design. Operates within a 10VDC to 40VDC supply voltage range, with a typical operating voltage of 30VDC. Offers an NPN output configuration and a switching current of 200mA, with a response frequency of 2kHz. Rated IP67 for environmental protection and RoHS compliant. Dimensions are 15mm height, 15mm width, and 37mm length, with panel mount termination via connector.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2E-X1R5E1-M3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E2E-X1R5E1-M3 technical specifications.
| Body Material | Stainless Steel |
| Height | 15mm |
| Length | 37mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 40V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Voltage | 30V |
| Output Configuration | NPN |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Frequency | 2kHz |
| RoHS Compliant | Yes |
| Sensing Distance | 1.5mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Shielded |
| Switching Current | 200mA |
| Termination | Connector |
| Width | 15mm |
| RoHS | Compliant |
