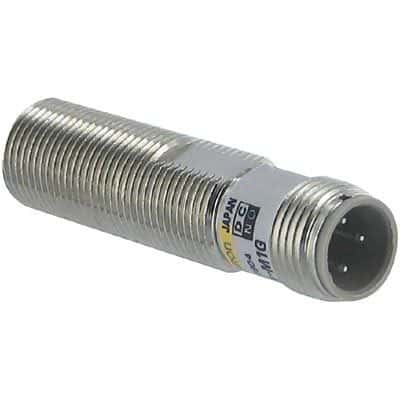

Inductive proximity sensor with a 3mm sensing distance and shielded metal body. Features a 10V to 30V DC supply voltage range, 100mA switching current, and 1kHz response frequency. Operates between -25°C and 70°C, with IP67 rating. Mountable via brackets, DIN rail, or panel. Connector termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2E-X3D1-M1G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Package/Case | Metal |
| Height | 21mm |
| Length | 47mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Brackets, DIN Rail, Panel |
| Output | NO |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Frequency | 1kHz |
| RoHS Compliant | No |
| Sensing Distance | 3mm |
| Sensing Method | Inductive |
| Series | E2E |
| Shielding | Shielded |
| Switching Current | 100mA |
| Termination | Connector |
| Width | 21mm |
| RoHS | Not Compliant |
