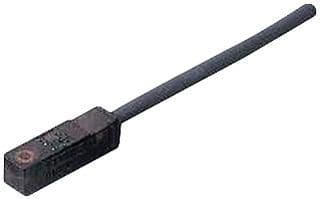

Inductive proximity sensor with a 1.6mm sensing distance and 1kHz response frequency. Features a plastic body, module package, and cable lead termination. Operates on 10-30VDC with a maximum switching current of 50mA. Rated IP67 for environmental protection, with dimensions of 20mm length, 6.4mm width, and 7.9mm depth. Suitable for operating temperatures from -25°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E2SW111M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Plastic |
| Package/Case | Module |
| Depth | 7.9mm |
| Height | 5.9mm |
| Length | 20mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Screw |
| Operating Supply Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Frequency | 1kHz |
| Sensing Distance | 1.6mm |
| Sensing Method | Inductive |
| Series | E2S |
| Shielding | Unshielded |
| Switching Current | 50mA |
| Termination | Cable Leads |
| Width | 6.4mm |
| RoHS | Compliant |
