The Omron E3S-CR61 is a metal panel mount electromechanical component with a PNP output configuration. It operates within a temperature range of -25°C to 55°C and is rated for 100mA of output current at 24V. The component is CE approved and RoHS compliant, with a response time of 1ms. It is available in a bulk packaging configuration and has a metal package case.
PackageMetal
MountingPanel, Screw
Quick Jump:
Technical Specifications
Omron E3S-CR61 technical specifications.
General
| Approvals | CE |
| Package/Case | Metal |
| Height | 32.2mm |
| Lead Free | Contains Lead |
| Length | 57mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Panel, Screw |
| Operating Supply Voltage | 24V |
| Output Configuration | Dark-On |
| Output Current | 100mA |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 3m |
| Series | E3S-C |
| Weight | 4.06oz |
| Width | 40.4mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron E3S-CR61 Datasheet
Download the complete datasheet for Omron E3S-CR61 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

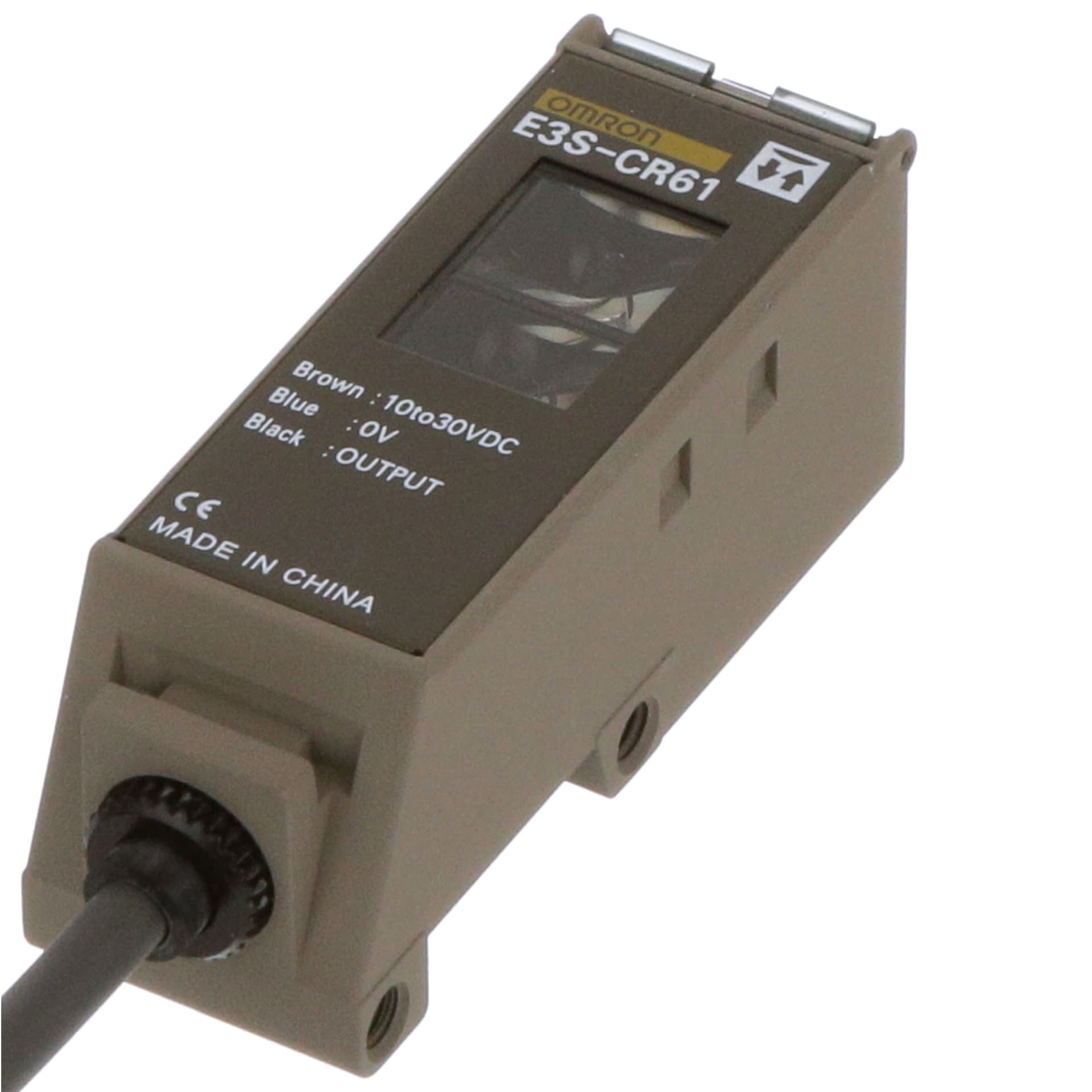

Product Images
