Diffuse photoelectric sensor with a 100mm sensing distance and 1ms response time. Features PNP output configuration, 100mA output current, and operates on a 12-24V DC supply voltage. Constructed from polybutylene material with IP67 and IP69K ratings, this sensor offers screw mounting and M8 connector termination. Operating temperature range is -25°C to 55°C.
MountingScrew
Quick Jump:
Technical Specifications
Omron E3Z-D86 technical specifications.
General
Height
20mm
Length
43.5mm
Material
Polybutylene
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
24V
Min Supply Voltage (DC)
12V
Max Supply Voltage
24V
Min Supply Voltage
12V
Max Voltage Rating (DC)
24V
Mount
Screw
Output Configuration
Dark-On
Output Current
100mA
Output Type
PNP
Package Quantity
1
Packaging
Bulk
Ratings
IP67, IP69K
Reach SVHC Compliant
Unknown
Response Time
1ms
RoHS Compliant
Yes
Sensing Distance
100mm
Series
E3Z
Termination
Connector
Width
10.8mm
Compliance
RoHS
Compliant
Datasheet
Omron E3Z-D86 Datasheet
Download the complete datasheet for Omron E3Z-D86 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

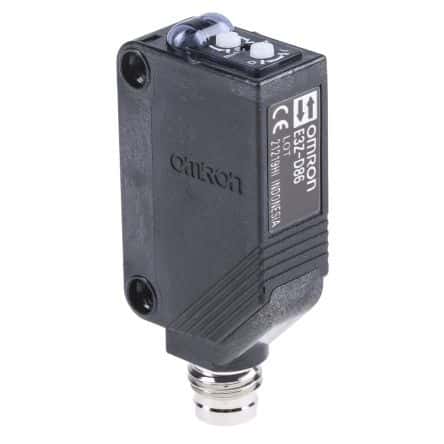

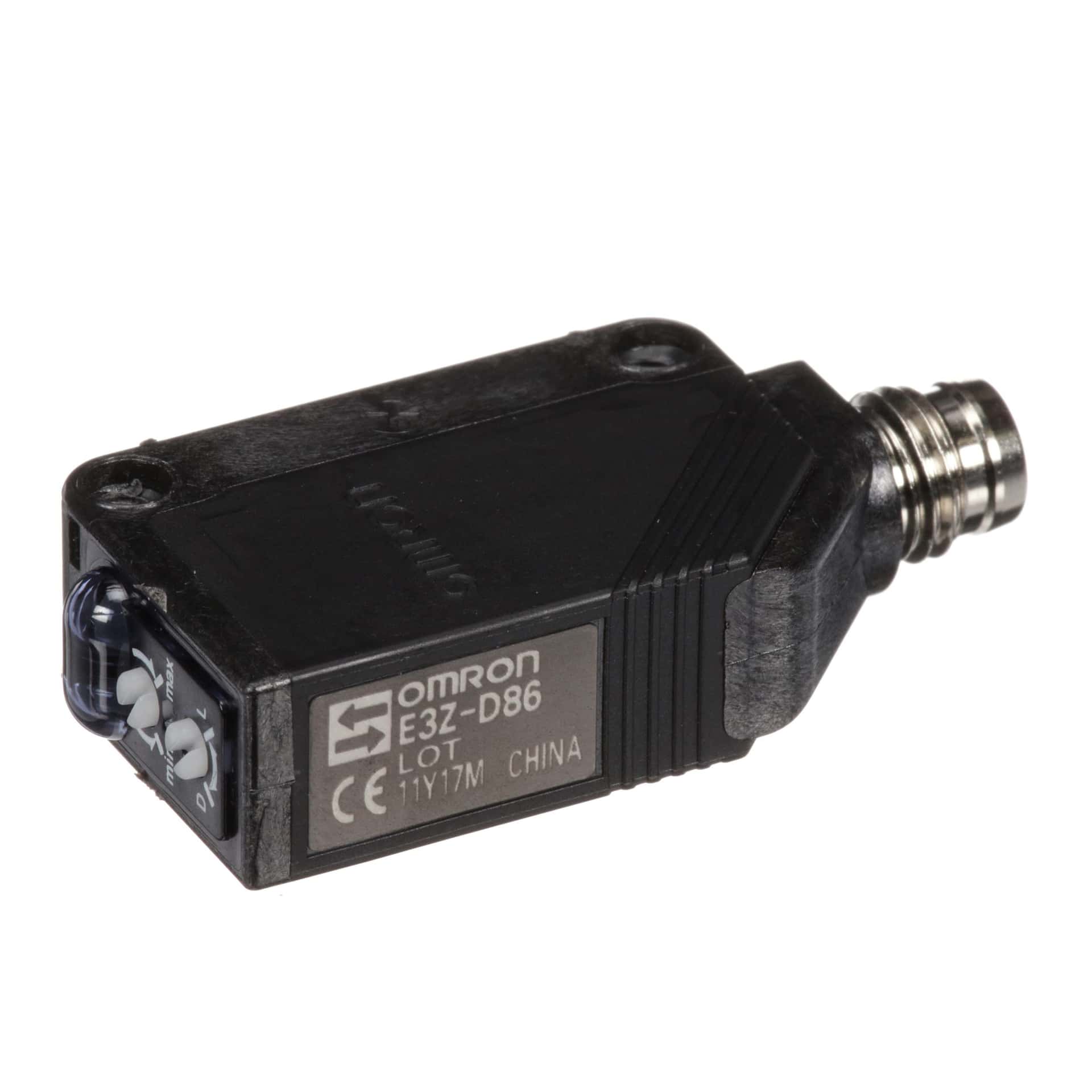

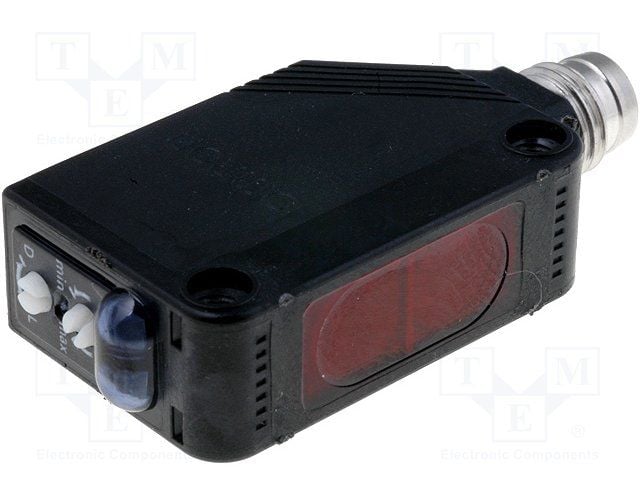

Product Images
