The Omron E3Z-G61 is a DIN rail mount electromechanical sensor with a maximum operating temperature of 55°C and a minimum operating temperature of -25°C. It operates at 24V and has a response time of 1ms. The sensor is rated for IP64 and is RoHS compliant. It is available in bulk packaging with a package quantity of one. The sensor is a single unit with a height of 11mm, length of 50mm, and width of 40mm.
MountingDIN Rail
Quick Jump:
Technical Specifications
Omron E3Z-G61 technical specifications.
General
| Height | 11mm |
| Length | 50mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Mount | DIN Rail |
| Operating Supply Voltage | 24V |
| Output Configuration | Dark-On |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP64 |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 0.984inch |
| Series | E3Z-G |
| Width | 40mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron E3Z-G61 Datasheet
Download the complete datasheet for Omron E3Z-G61 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

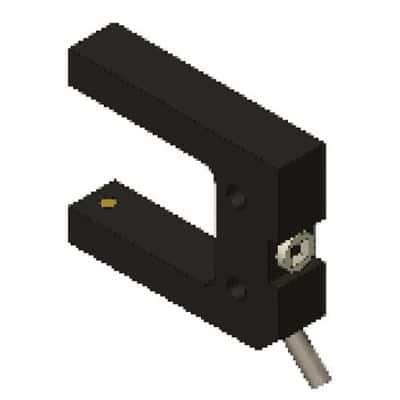

Product Images
