MountingSnap in, PCB
Power100mW
Quick Jump:
Technical Specifications
Omron EE-SX1235A-P2 technical specifications.
General
Collector Emitter Breakdown Voltage
30V
Collector-emitter Voltage-Max
30V
Fall Time
8us
Forward Current
50mA
Input Current
50mA
Lead Free
Lead Free
Max Breakdown Voltage
30V
Max Collector Current
20mA
Max Operating Temperature
95°C
Min Operating Temperature
-25°C
Mount
Snap in, PCB
Number of Channels
1
Output Configuration
Phototransistor
Package Quantity
100
Packaging
Bulk
Power Dissipation
100mW
Reach SVHC Compliant
Unknown
Response Time
8us
Reverse Voltage (DC)
4V
RoHS Compliant
Yes
Sensing Distance
0.197inch
Termination
Snap in
Wavelength
940nm
Compliance
RoHS
Compliant
Datasheet
Omron EE-SX1235A-P2 Datasheet
Download the complete datasheet for Omron EE-SX1235A-P2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

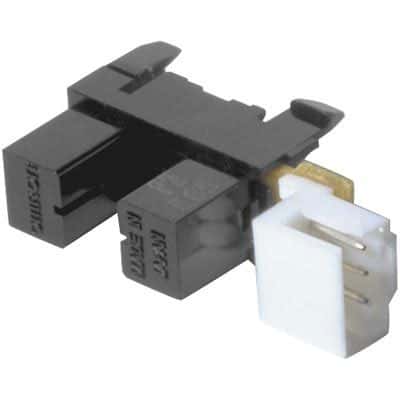

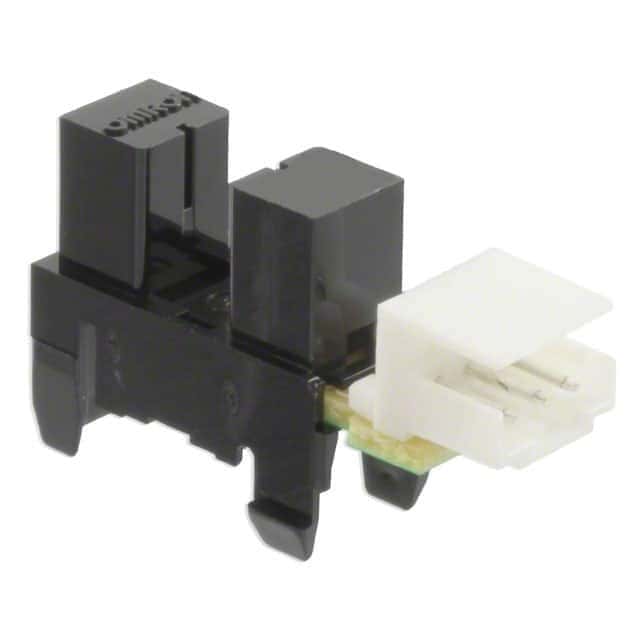

Product Images
