Technical Specifications
Omron EE-SX384 technical specifications.
General
Fall Time
20us
Forward Current
20mA
Height
8mm
Lead Free
Lead Free
Length
12.5mm
Low Level Output Current
16mA
Max Collector Current
16mA
Max Operating Temperature
75°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Channels
1
Operating Supply Current
3.2mA
Output Configuration
NPN - Open Collector
Package Quantity
200
Reach SVHC Compliant
Unknown
Reverse Voltage
4V
Reverse Voltage (DC)
4V
RoHS Compliant
Yes
Sensing Distance
0.138inch
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Omron EE-SX384 Datasheet
Download the complete datasheet for Omron EE-SX384 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

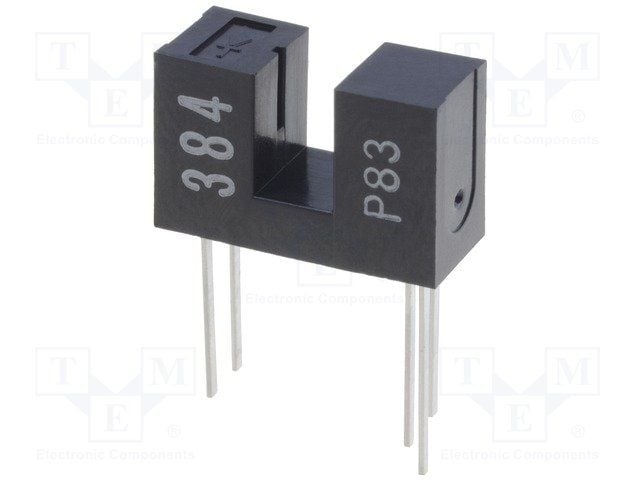

Product Images
