Through-beam photoelectric sensor with NPN open-collector output. Features a 5mm sensing distance and 1ms response time. Operates with a 5-24VDC supply voltage and offers a maximum collector current of 100mA. Constructed from Polybutylene material with a 940nm wavelength. IP50 rated, CE and cULus approved, with a chassis or panel mount.
MountingChassis Mount, Panel
Quick Jump:
Technical Specifications
Omron EE-SX671 technical specifications.
General
Approvals
CE, cULus
Height
15.5mm
Input Current
35mA
Lead Free
Contains Lead
Length
25.4mm
Material
Polybutylene
Max Collector Current
100mA
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
24V
Min Supply Voltage (DC)
5V
Max Supply Voltage
24V
Min Supply Voltage
5V
Max Voltage Rating (DC)
24V
Mount
Chassis Mount, Panel
Number of Channels
1
Operating Supply Current
12mA
Operating Supply Voltage
24V
Output Configuration
NPN - Open Collector
Output Current
100mA
Output Type
Phototransistor, NPN
Output Voltage
800mV
Package Quantity
1
Packaging
Bulk
Ratings
IP50
Reach SVHC Compliant
Unknown
Response Time
1ms
RoHS Compliant
Yes
Sensing Distance
5mm
Termination
Connector
Wavelength
940nm
Width
20.7mm
Compliance
RoHS
Compliant
Datasheet
Omron EE-SX671 Datasheet
Download the complete datasheet for Omron EE-SX671 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

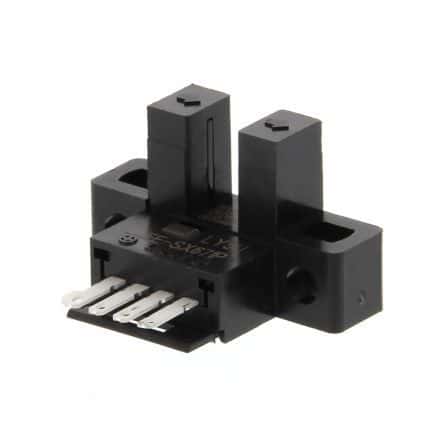

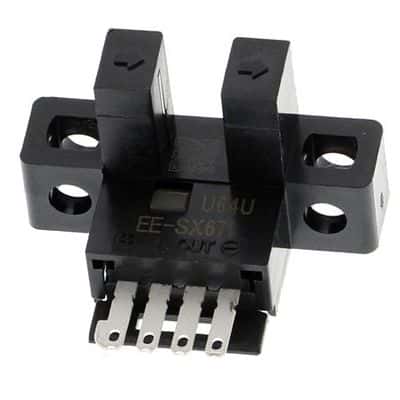

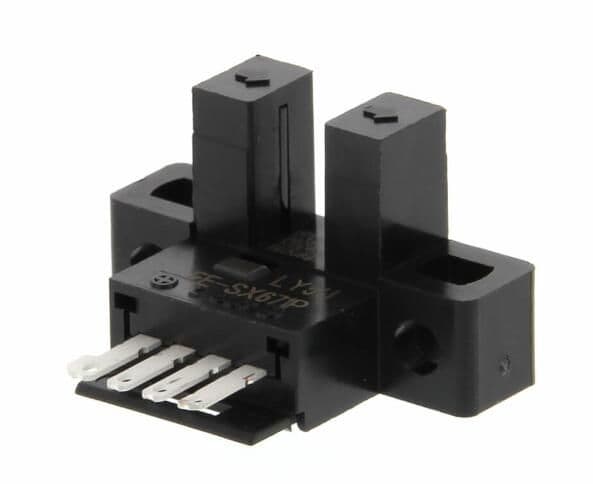

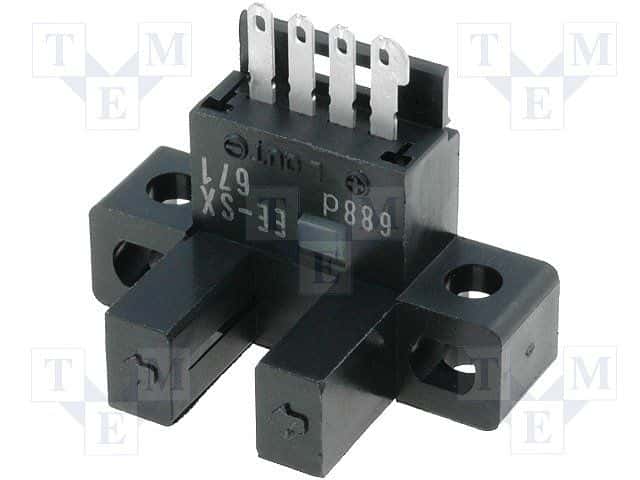

Product Images
