MountingChassis Mount
Quick Jump:
Technical Specifications
Omron EE-SX671-WR1M technical specifications.
General
Height
18.7mm
Length
26.2mm
Max Collector Current
100mA
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
24V
Min Supply Voltage (DC)
5V
Mount
Chassis Mount
Number of Channels
1
Operating Supply Current
35mA
Output Configuration
Dark-On
Output Type
Phototransistor, NPN
Package Quantity
1
Ratings
IP50
RoHS Compliant
Yes
Sensing Distance
5mm
Series
EE-SX67
Termination
Cable
Wavelength
940nm
Width
15.5mm
Compliance
RoHS
Compliant
Datasheet
Omron EE-SX671-WR1M Datasheet
Download the complete datasheet for Omron EE-SX671-WR1M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

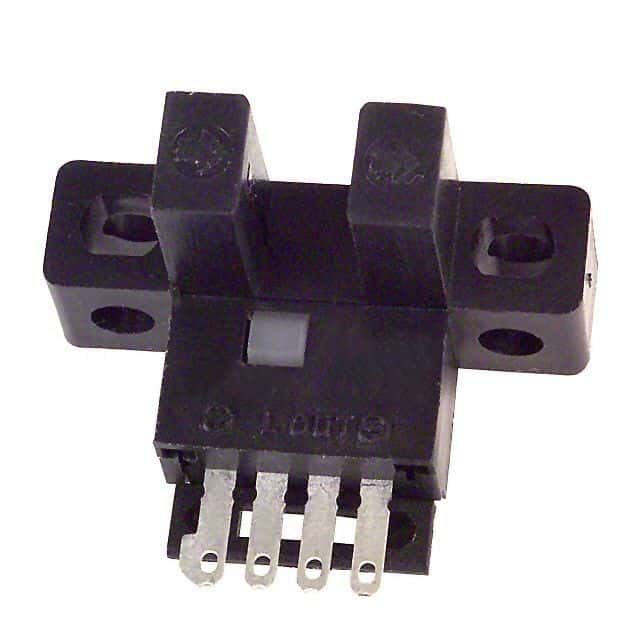

Product Images
