Through-beam photoelectric sensor with PNP output, featuring a 5mm sensing distance and 1ms response time. Operates on 5-24V DC supply voltage with a maximum collector current of 100mA. This sensor offers light-ON/dark-ON functionality and a phototransistor output. Designed for chassis or panel mounting with a 4-pin connector termination. Rated IP50 and RoHS compliant, it operates within a temperature range of -25°C to 55°C.
MountingChassis Mount, Panel
Quick Jump:
Technical Specifications
Omron EE-SX671R technical specifications.
General
Height
18.3mm
Lead Free
Contains Lead
Length
26.2mm
Max Collector Current
100mA
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
24V
Min Supply Voltage (DC)
5V
Max Supply Voltage
24V
Min Supply Voltage
5V
Mount
Chassis Mount, Panel
Number of Channels
1
Operating Supply Current
12mA
Output Configuration
PNP - Open Collector
Output Type
Phototransistor, PNP
Package Quantity
1
Packaging
Bulk
Ratings
IP50
Response Time
1ms
RoHS Compliant
Yes
Sensing Distance
5mm
Termination
Connector
Wavelength
940nm
Width
15.5mm
Compliance
RoHS
Compliant
Datasheet
Omron EE-SX671R Datasheet
Download the complete datasheet for Omron EE-SX671R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

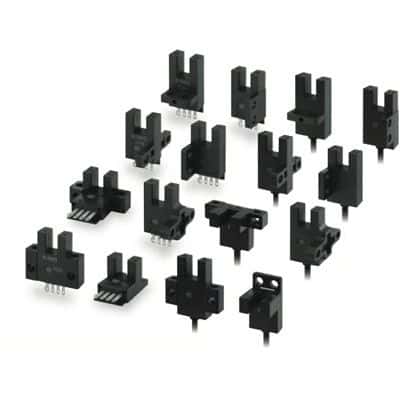

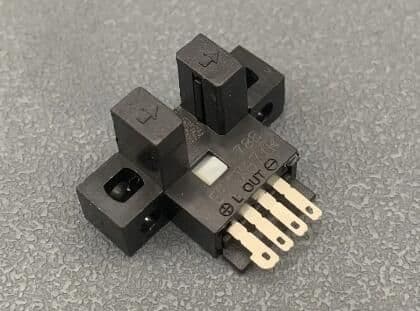

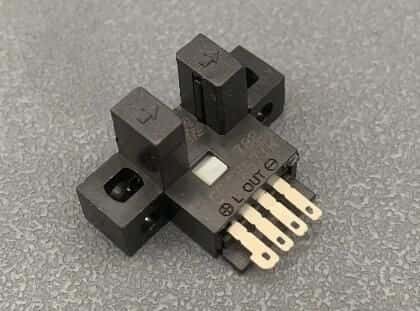

Product Images
