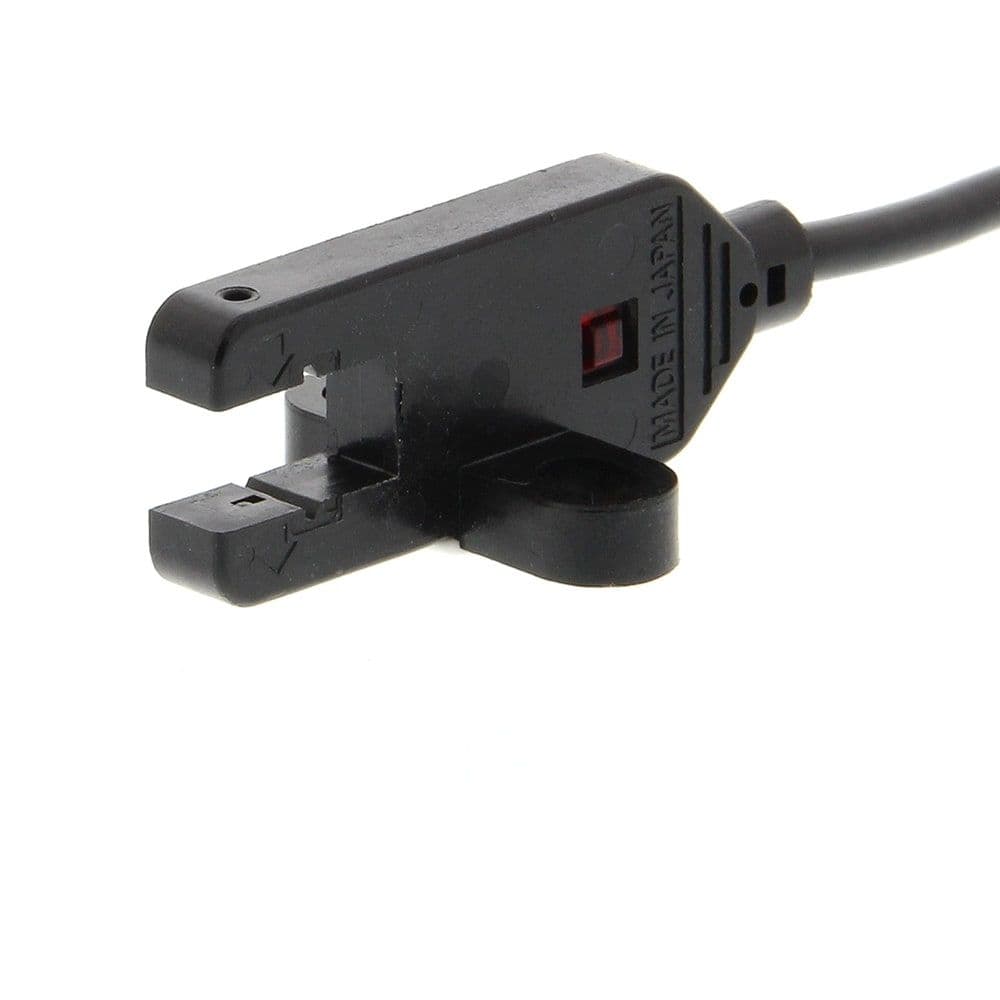

The Omron EE-SX772P is an optical PNP phototransistor with a sensing distance of 5mm. It operates within a temperature range of -25°C to 55°C and can handle a maximum supply voltage of 24V. The device is mounted via screw and chassis mount. It is compliant with RoHS regulations and is available in a bulk packaging format.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron EE-SX772P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Height | 31.1mm |
| Lead Free | Contains Lead |
| Length | 19.1mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 5V |
| Mount | Screw, Chassis Mount |
| Operating Supply Current | 30mA |
| Output Configuration | PNP - Open Collector |
| Output Type | Phototransistor, PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Sensing Distance | 5mm |
| Sensing Method | Optical |
| Width | 12.3mm |
| RoHS | Compliant |
Download the complete datasheet for Omron EE-SX772P to view detailed technical specifications.
