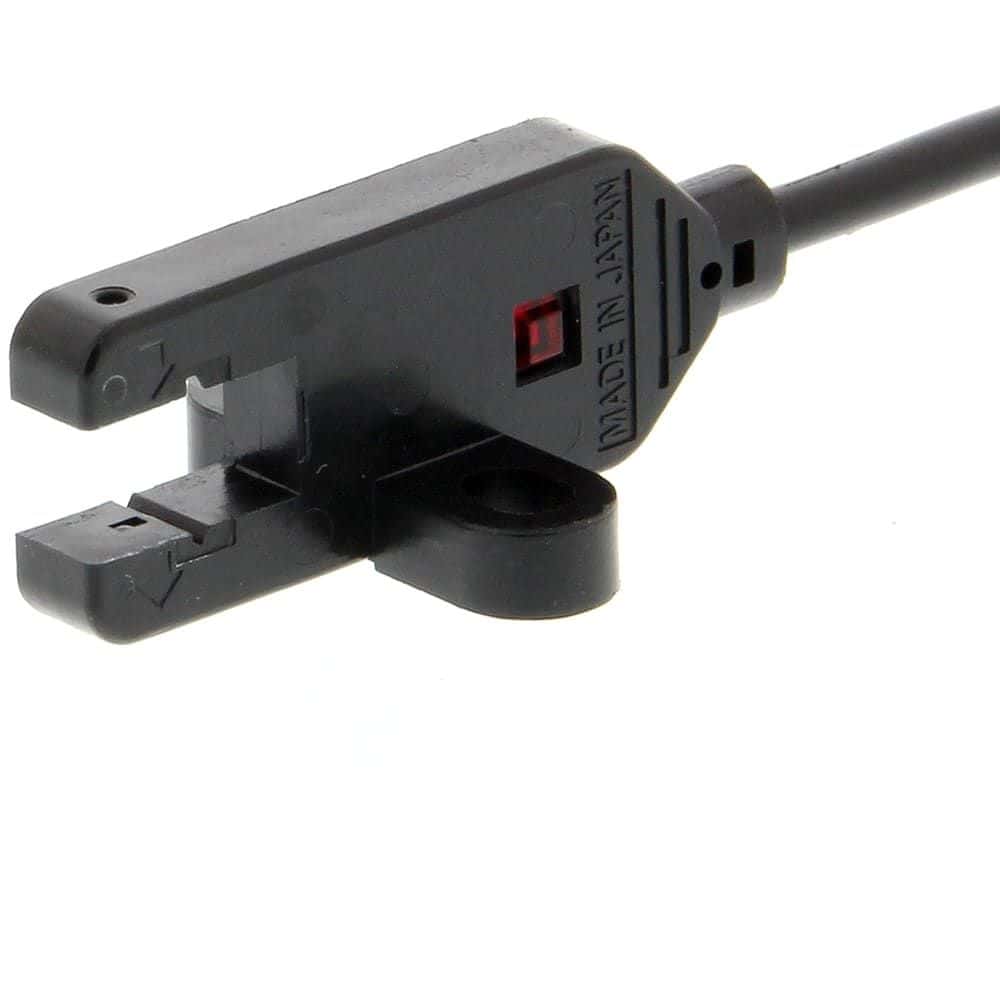

The EE-SX772R is a PNP phototransistor optical sensor with a sensing distance of 5mm and a wavelength of 940nm. It is designed for screw chassis mount and has a maximum operating temperature of 55°C. The sensor has a maximum supply voltage of 24V and a minimum supply voltage of 5V. It is RoHS compliant and has a maximum operating current of 30mA. The EE-SX772R is suitable for general use in optical sensing applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron EE-SX772R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Forward Current | 30mA |
| Height | 31.1mm |
| Lead Free | Lead Free |
| Length | 19.1mm |
| Max Collector Current | 100mA |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 5V |
| Mount | Screw, Chassis Mount |
| Operating Supply Current | 30mA |
| Output Configuration | PNP - Open Collector |
| Output Type | Phototransistor, PNP |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Sensing Distance | 5mm |
| Sensing Method | Optical |
| Wavelength | 940nm |
| Width | 12.3mm |
| RoHS | Compliant |
