Technical Specifications
Omron G2R-1 DC12 BY OMI technical specifications.
General
| Coil Current | 43.6mA |
| Coil Power | 530mW |
| Coil Resistance | 275R |
| Coil Voltage (DC) | 12V |
| Contact Material | Silver |
| Depth | 13mm |
| Height | 25.5mm |
| Length | 29mm |
| Life (Hours) | 100000Hour |
| Max Current Rating | 10A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 380V |
| Max Voltage Rating (DC) | 125V |
| Mount | PCB, Through Hole |
| Packaging | Bulk |
| Radiation Hardening | No |
| Termination | Plug |
| Throw Configuration | SPDT |
Compliance
| RoHS | Compliant |
Datasheet
Omron G2R-1 DC12 BY OMI Datasheet
Download the complete datasheet for Omron G2R-1 DC12 BY OMI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

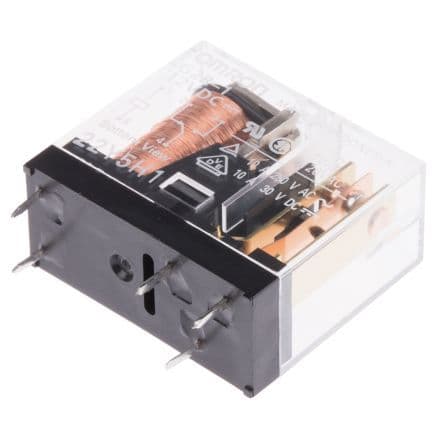

Product Images
