Technical Specifications
Omron G2R-1B-EDC12 technical specifications.
General
Coil Current
43.6mA
Coil Power
530mW
Coil Resistance
275R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
16A
Contact Material
Silver
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operate Time
15ms
Package Quantity
100
Packaging
Tray
Relay Type
General Purpose
Release Time
5ms
Series
G2R
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Omron G2R-1B-EDC12 Datasheet
Download the complete datasheet for Omron G2R-1B-EDC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

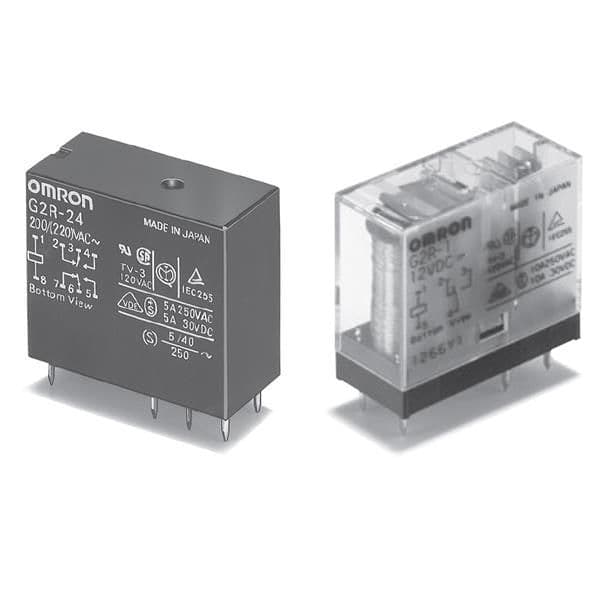

Product Images
