Technical Specifications
Omron G2R-2 48VDC technical specifications.
General
Coil Current
11.5mA
Coil Resistance
4.17kR
Coil Voltage (DC)
48V
Contact Current Rating
5A
Contact Material
Silver
Depth
13mm
Length
29mm
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Operate Time
15ms
Radiation Hardening
No
Ratings
IP54
Switching Current
5A
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
380V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Omron G2R-2 48VDC Datasheet
Download the complete datasheet for Omron G2R-2 48VDC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

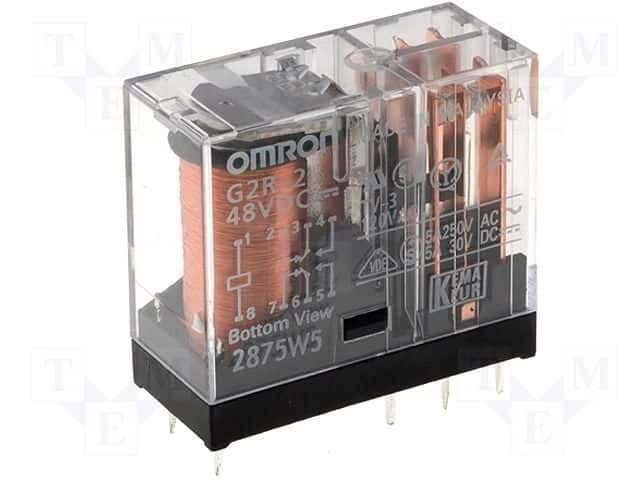

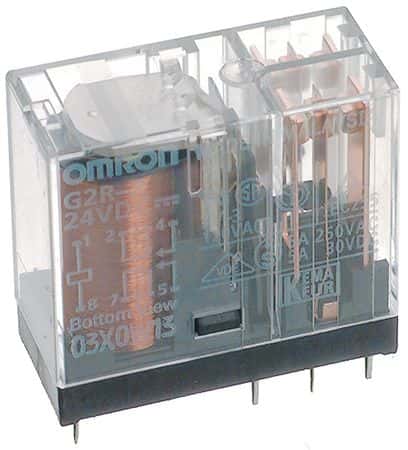

Product Images
