Technical Specifications
Omron G2R-2-AC230 technical specifications.
General
| Coil Current | 4mA |
| Coil Resistance | 27.5kR |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 230V |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operate Time | 15ms |
| Packaging | Tray |
| Relay Type | General Purpose |
| Release Time | 10ms |
| Series | G2R |
| Termination | PC Pin |
| Throw Configuration | DPDT |
Compliance
| RoHS | Compliant |
Datasheet
Omron G2R-2-AC230 Datasheet
Download the complete datasheet for Omron G2R-2-AC230 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

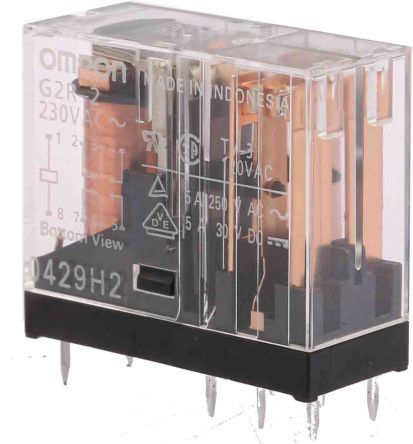

Product Images
