Technical Specifications
Omron G2R-2-AUL-AC120 technical specifications.
General
Coil Current
7.5mA
Coil Resistance
6.5kR
Coil Type
Non-Latching
Coil Voltage (AC)
120V
Contact Current Rating
5A
Contact Material
Silver
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operate Time
15ms
Package Quantity
50
Packaging
Tray
Relay Type
General Purpose
Release Time
10ms
Series
G2R
Termination
PC Pin
Throw Configuration
DPDT
Compliance
RoHS
Compliant
Datasheet
Omron G2R-2-AUL-AC120 Datasheet
Download the complete datasheet for Omron G2R-2-AUL-AC120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

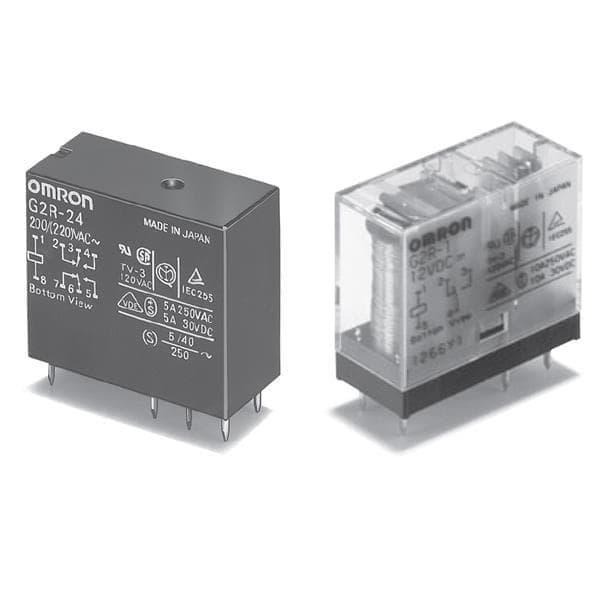

Product Images
